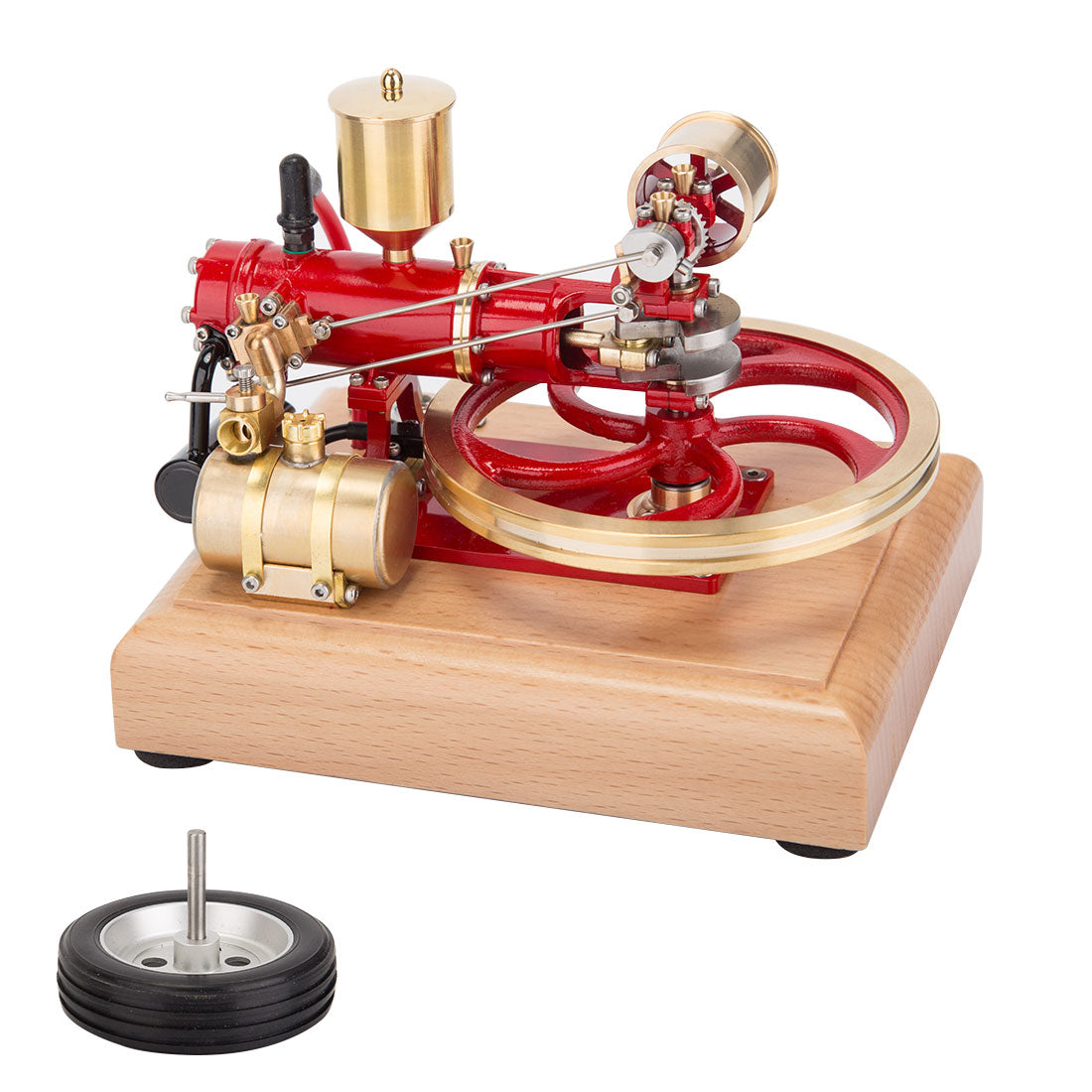

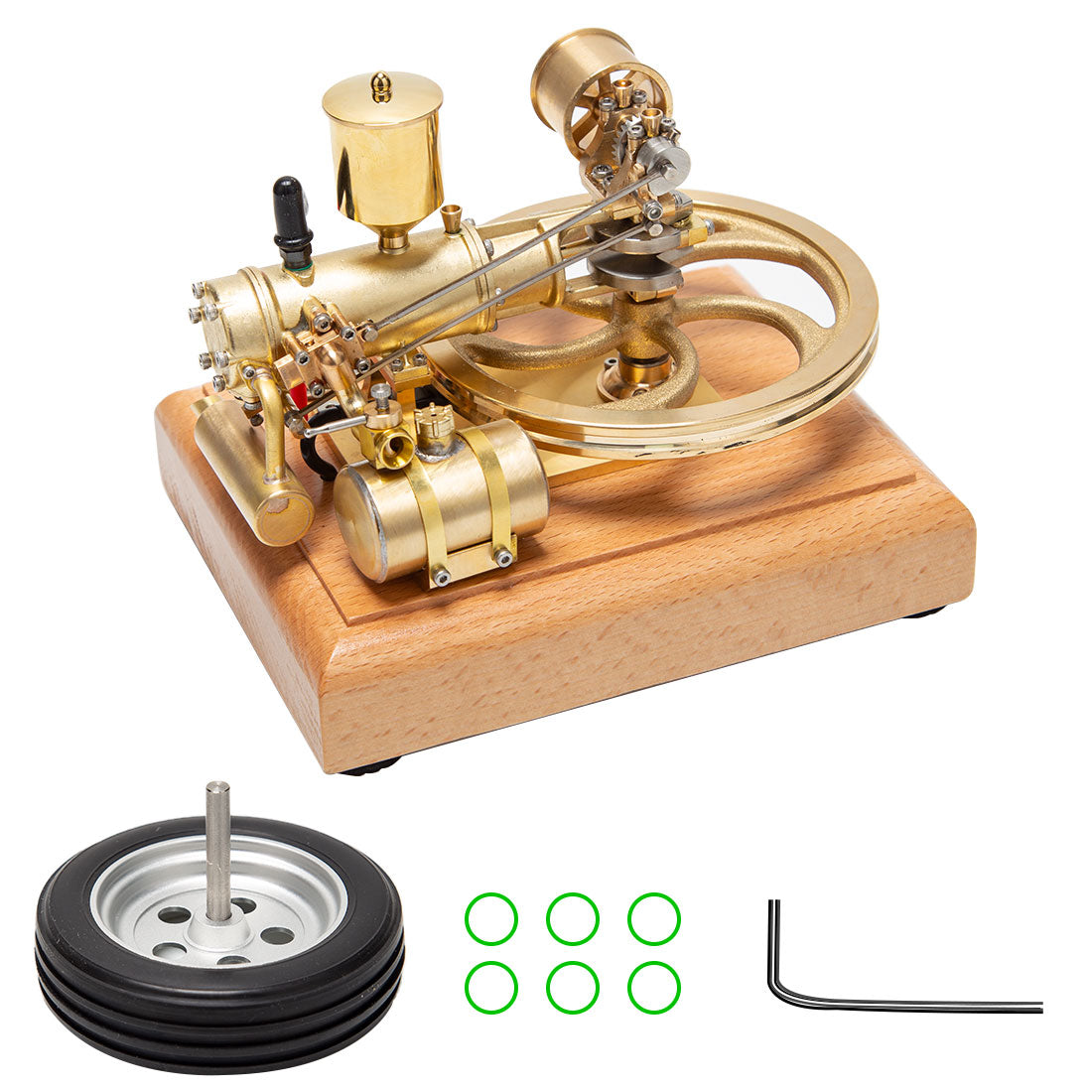

R18 1.9CC Horizontal Single Cylinder Four-stroke Engine Internal Combustion Engine Model for Three-Wheelers

R18 1.9CC Horizontal Single Cylinder Four-stroke Engine Internal Combustion Engine Model for Three-Wheelers

Features:

Simulation Three-wheel car engine:
The horizontal cylinders and a large flywheel all highlight the charm of this engine which is based on the first car engine prototype. The advantage of this model is its ingenious structural design, with each component reproducing the mechanical principles. It is a fully functional all-metal engine model that can be started and operated.

Excellent Manufacturing:
The entire engine is made in precision casting with each part carefully crafted. The contour of the cylinder block and other parts of the casting process is very clever, which is the most significant feature of the first car engine. You will feel the unique charm of the engine’s mechanical operation.

Starting Steps:
1. Check the engine wires on the wooden base and connect them to the fuel tank pipe. Then install three AA batteries(4.5 V).
2. Fill the fuel tank with 95# gasoline, after the fuel is added, rotate the flywheel on the right side of the engine (on the surface of the power switch) clockwise for several turns to allow the passage of the mixed fuel totally into the cylinder. Make sure that there is no air in the fuel pipe.
3. Turn on the power switch, and then quickly turn the flywheel (on the surface of the power switch) clockwise to start the engine.

Notes:
1. In the ignition device, if the machine does not start with the normal compression of the cylinder,  you need to adjust the needle of the carburetor.
2. Tighten the main needle on the carburetor, loosen one-quarter cycle and turn the flywheel to ensure the mixture ratio of gasoline and air reaches normal.
3. When the machine stops running, turn off the power switch.

An Excellent Model Gift:
This is an amazing mechanical craft for enjoying the charm of this simulation car engine when it is working. Perfect for personal use or as a high-end gift for friends, family, or model enthusiasts on major holidays.

Age Recommendation: 14+

Specifications:
.Material: Brass/Stainless Steel/Wooden
.Item No.: R18
.Displacement: 1.9CC
.Cylinder Diameter: 1.3cm
.Stroke: 1.8cm
.Flywheel Diameter: 10cm
.Voltage of the Ignition Device: 4.5V(3*AA Batteries, not included)
.Starting Method: External Wheel or Manual Pull
.Product Weight: 1200g
.Product Dimensions: 15 x 11 x 10cm
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1400g
.Packing: Box

Package List:
1 x Engine
1 x Instructions
