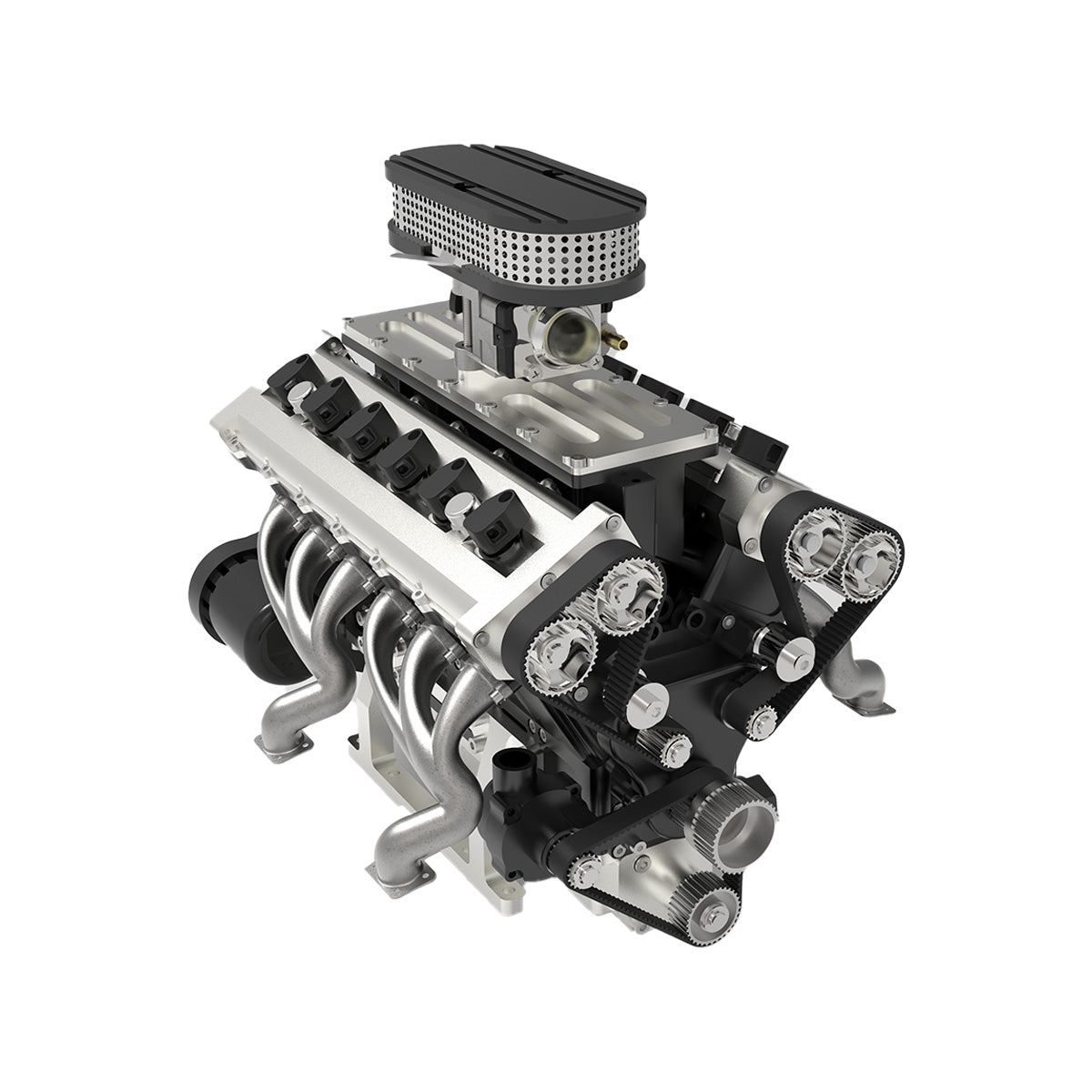

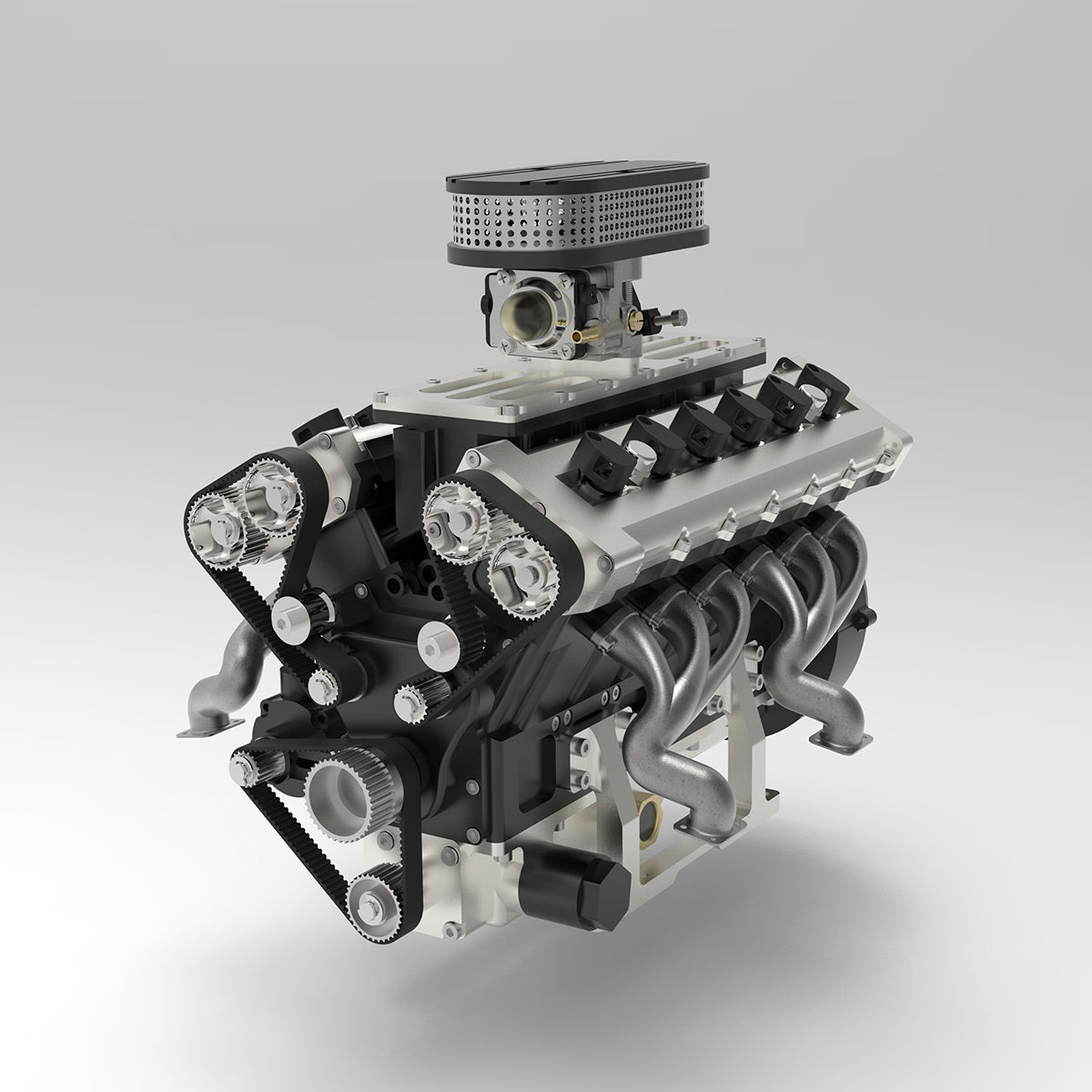

ENJOMOR V12 Engine GS-V12 72CC DOHC 4-Stroke 12-Cylinder 48-Valve Water-Cooled Electric Start Gasoline Engine Model – V12 Engine Model That Works

ENJOMOR V12 GS-V12 72CC DOHC Four-Stroke V-Shaped Twelve-Cylinder Water-Cooled Electric Gasoline Internal Combustion Engine Model – V12 Engine Model That Works

Features:

1. This V12 engine uses a double overhead camshaft valvetrain with a total of 48 valves, an exposed timing belt, and even the scale and appearance of the engine. Every effort has been made to maintain a high level of performance and be able to provide extraordinary power.
2. Independent lubrication system, the oil sump oil pump pumps oil to the top of the engine for lubrication, and a transparent visible oil well cover is added. There is no need to disassemble the remaining oil to see the remaining amount, and the oil can be recycled and reused.
3. The side water-cooling pump provides effective heat dissipation, which can extend the engine working time and service life.
4. Hall-type CDI pulse dual-distribution ignition design, and equipped with a 3548 brushless starter motor, which can be started with one button and is more convenient to operate.
5. The entire machine casing is precision-manufactured by all-aluminum CNC, with a highly realistic shape and integrated exhaust manifold to restore the real engine sound.
6. Three piston rings (air ring, cone ring, oil ring) design and 32 process oil rings ensure in-cylinder compression and more efficient combustion efficiency.
7. High-hardness piston cylinder liner, cast integrated crankshaft, and the crankshaft is supported by full bearings (three large bearings in the middle and small bearings at both ends), which has high strength and good durability.
8. This engine is widely used. It can be used to modify large-scale model cars, ships, and tanks. It is also suitable as a desktop DIY working engine.
9. This is an amazing piece of mechanical craftsmanship. The reliability and good working performance of this engine make it very popular among high-end collector engine users. It will gain praise from more model engine enthusiasts.
10. Note: The engine needs to prepare the following additional ignition and water cooling kits: cdi igniter*2, power supply voltage 10-12V*2; 80A ESC*1, power supply voltage 24V (6S battery), fuel tank*1, fuel pipe*1 , radiator fan*1, water cooling pipe*1.

Specifications:

Material: Metal
Color: As Pictures Shown
Brand: ENJOMOR
Model: GS-V12
Form: Preassembled Edition
Dimensions: 23.5*14*23cm
Weight: 8KG
Engine Type: Gasoline Internal Combustion Engine
Valve Mechanism Type: DOHC
Displacement: 72cc
Cylinder: V-shaped Twelve Cylinders
Stroke: Four-Stroke
Bore Diameter: 20mm
Stroke: 18mm
Valve: 48 Valves (4*12)
Output Shaft Diameter: 10mm
Maximum Speed: 10000rpm
Maximum Power: 3.8 kw
Cooling Method: Water Cooling
Lubrication Method: independent lubrication (oil pump lubrication);
Starting Method: electric start (including brushless starter motor);
Ignition Mode: cdi igniter and distributor control ignition;
Spark Plug Type: 3/16-40 inch thread spark plug;(33ED3439081)
Ignition Voltage: 10-12V
Starting Power supply: 24 batteries (not included);
Fuel: 95# and above gasoline
Engine Oil Model: 0-15w
Oil Volume: 70-80mL

Packing List:

1* ENJOMOR V12 Engine Model (including 12pcs spark plugs)
1* Instructions
