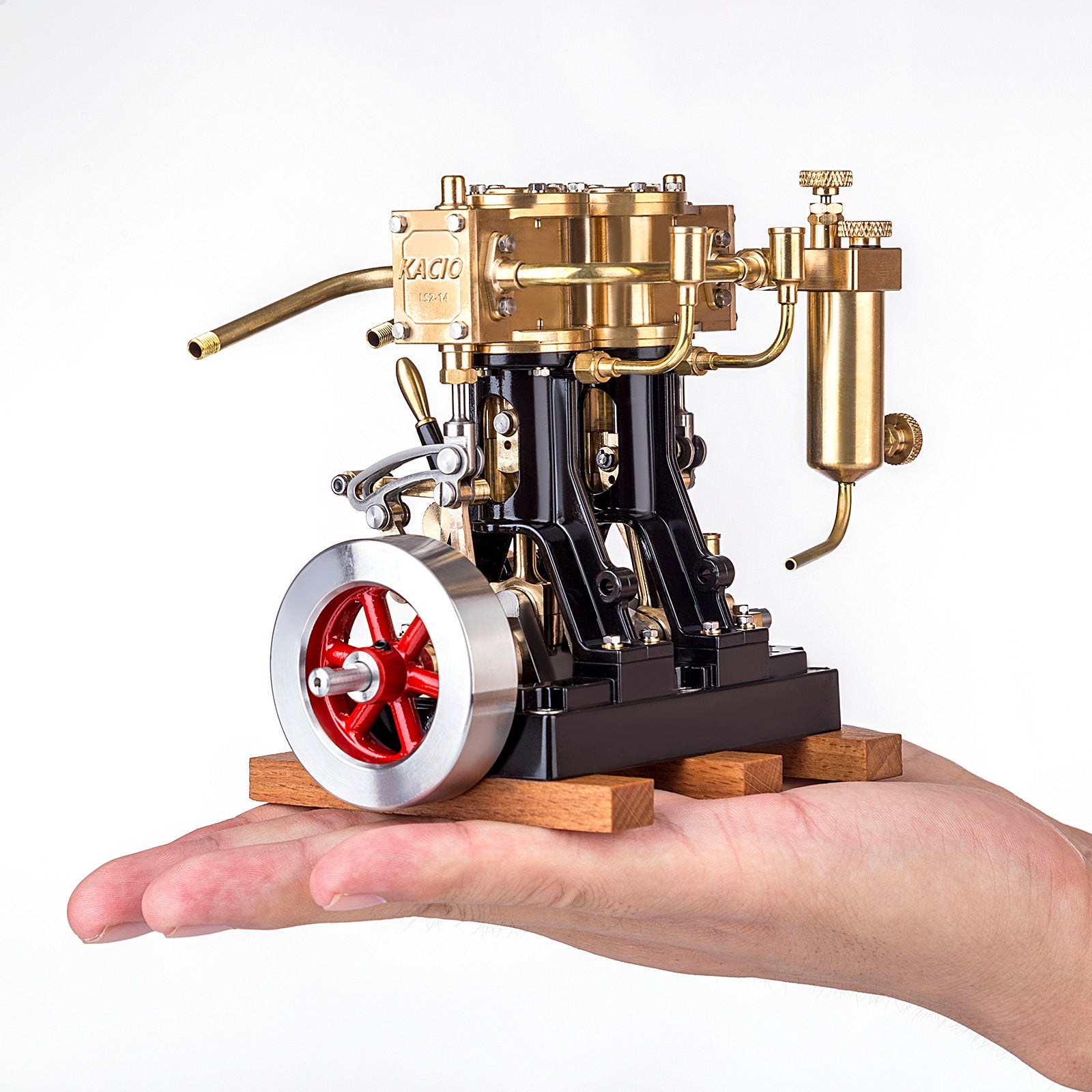

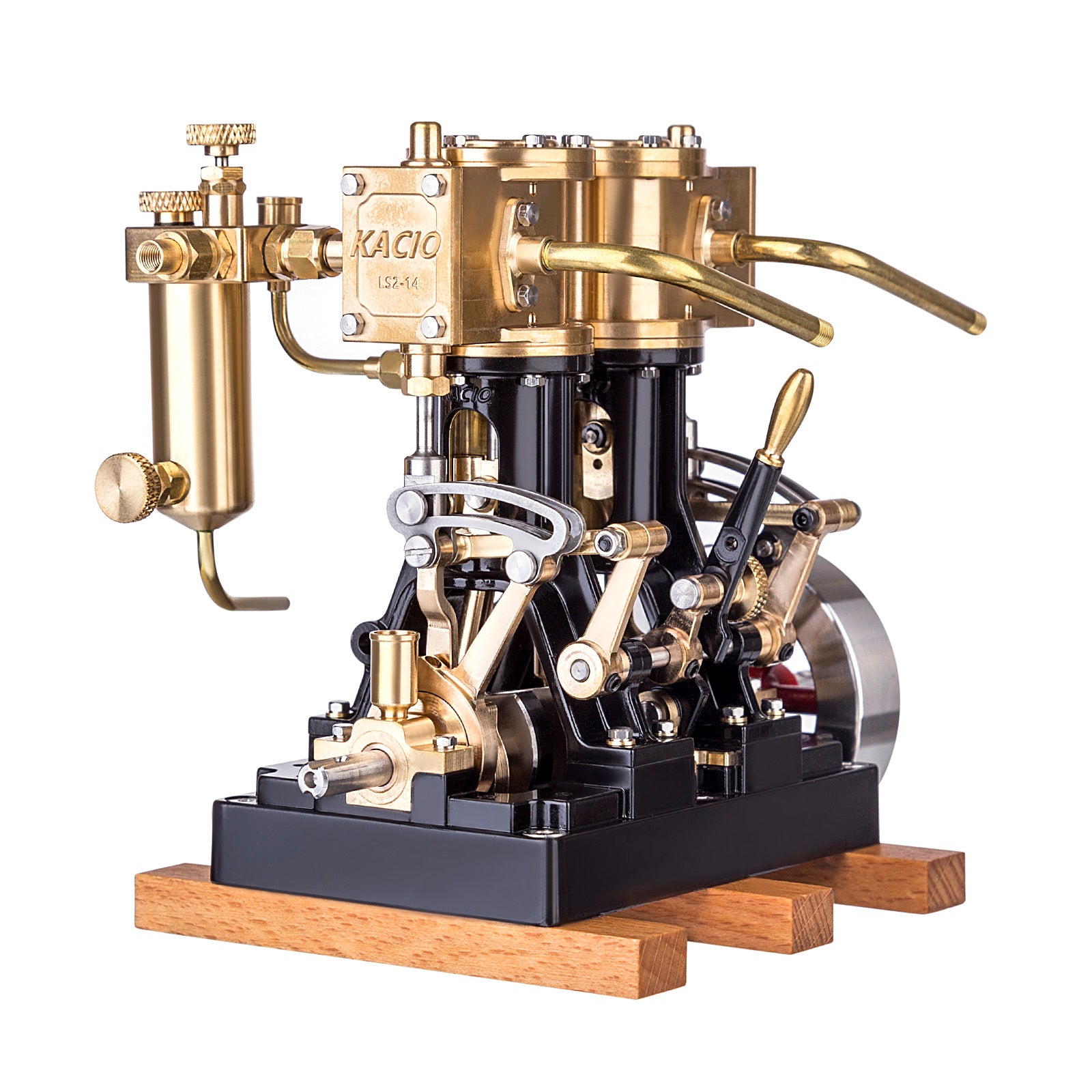

KACIO LS2-14 2 Cylinders Reciprocating Retro Steam Engine Model for Model Ship Model Boat Above 80cm

KACIO LS2-14 Double Cylinder Reciprocating Steam Engine Model without Boiler for Steam Model Ships Above 80cm

Features:

.The surface of body is treated with electrophoresis, which will not fade for a long time.
.Integrated CNC steel crankshaft features good stability, high concentricity.
.The joint surface is sealed with fluorine rubber ring, which is high temperature resistant and corrosion resistant
.Multi-functional oil cup.
.Excellent lubrication system
.Lubrication port is provided for each friction surface
.The spindle sleeve is made of high hardness of beryllium copper
.The steam engine can be used as the best power for the model ship above 80CM, supporting positive and negative rotation.
.Large cylinder diameter and large stroke provide powerful power for the ship
.Efficient boiler is recommended for high power. Boiler is not included. You can buy it for yourself and you can consult us for a matching boiler.
.Mini delicate mechanical handicraft.
.A surprise gift for steam model fans
.For over 14 years
.The base is 58mm wide, 87mm long and 110mm high

Specifications:

.Color: As Shown
.Material: Copper
.Model: LS2-14
.Cylinder Diameter: 14.0mm
.Stroke: 15.0mm
.Spindle Diameter: 5.0mm
.Ground Clearance of Spindle Center: 19.0mm
.Operating Pressure: 0.1Mpa – 0.8Mpa
.Air Pressure Recommended: 0.4Mpa – 0.6Mpa
.Intake Connection Thread: M6-0.5 1/4-40
.Product Size: 8.7 x 5.8 x 11cm
.Product Weight: 1200g
.Package Dimensions: 10 x 8 x 15cm
.Package Weight: 1500g
.Packing: Box

Package Content:

.1Set x Steam Engine Model
