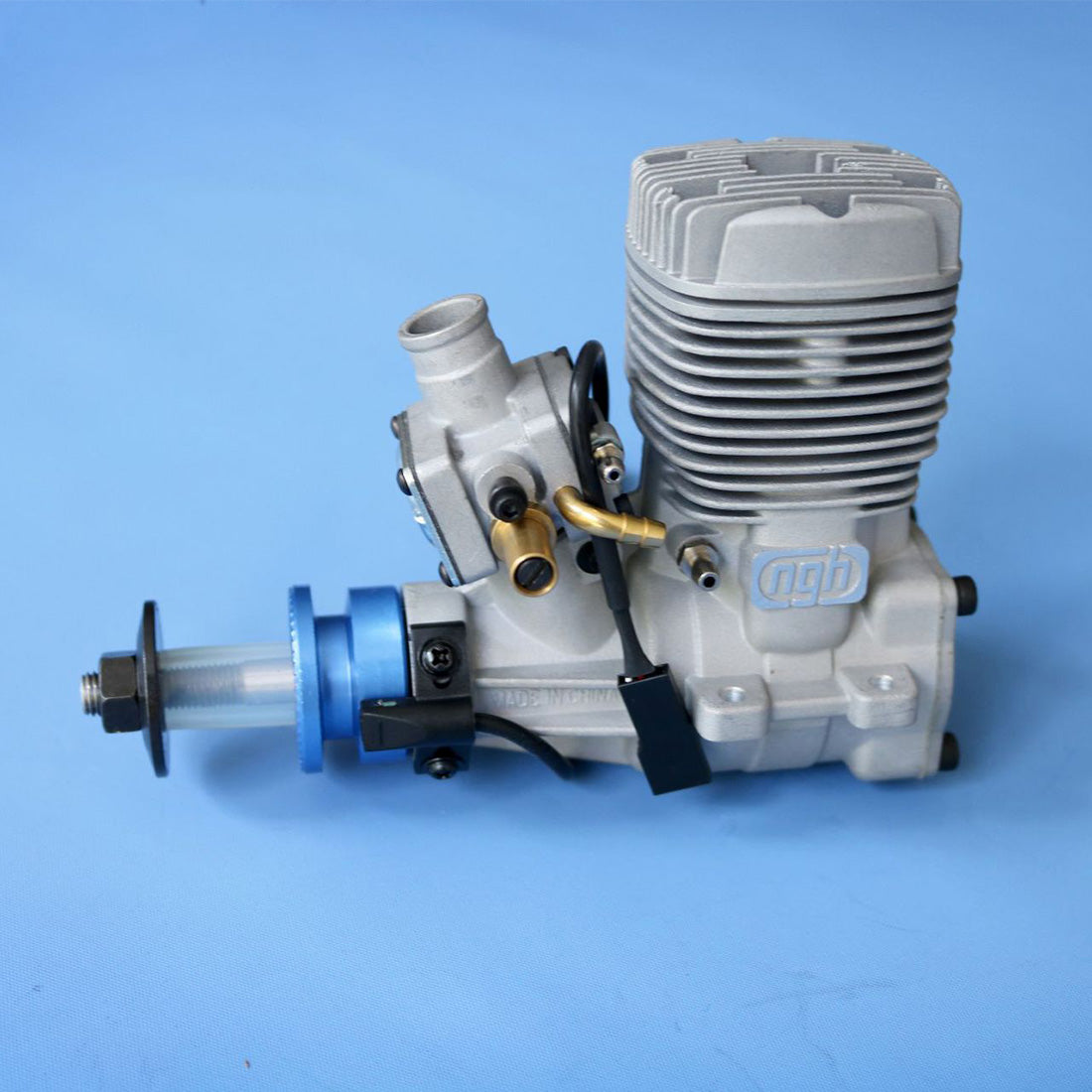

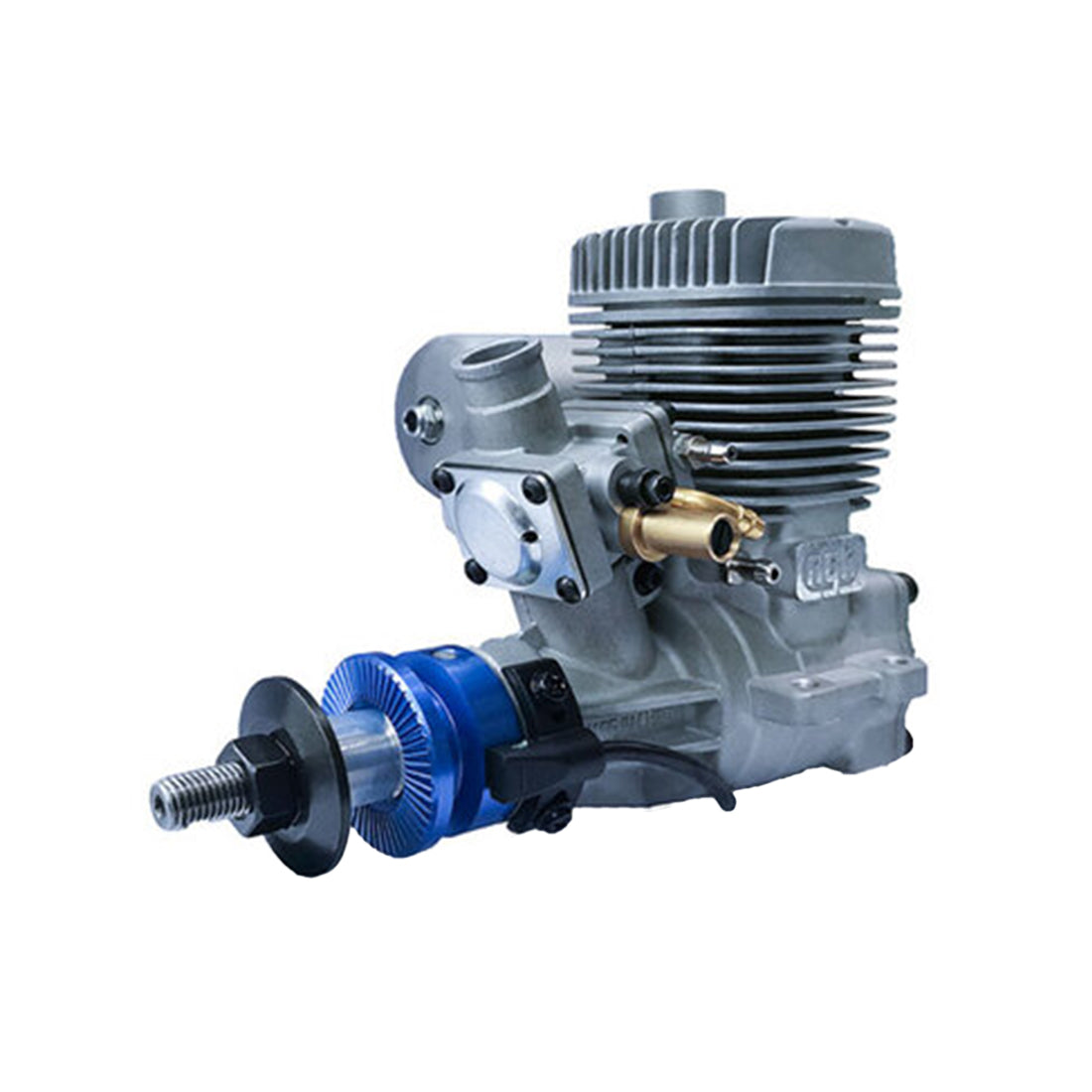

NGH GT17-Pro 17cc Single-Cylinder Two-Stroke Air-Cooled Gasoline Engine Model for Fixed-Wing RC Airplanes

NGH GT17-Pro 17cc Single-Cylinder Two-Stroke Air-Cooled Gasoline Engine Model for Fixed-Wing RC Airplanes

Features:

.Reliable Operation: Upgraded with a new front-mounted carburetor in March 2022, the GT17-Pro increases intake efficiency through propeller pressure, offering a significant boost in idle stability and overall engine performance. The redesigned carburetor enhances compatibility with the engine, providing a seamless and efficient operation. With an improved idle speed from 2000rpm to 1700rpm (using a 16*8 propeller), this engine ensures smooth transitions between low and high speeds, showcasing its exceptional linear performance. Additionally, it avoids firewall interference during installation.
.Durable Construction: Designed for professional use, the GT17-Pro features a compact and aesthetically pleasing structure, delivering powerful and stable performance. Built-in a durable bronze connecting rod, offering superior wear resistance compared to needle rods.
.Precise: The cylinder sleeve is made of wear-resistant ductile iron, with a tolerance within 0.01mm, significantly higher than the 0.03mm tolerance of aluminum alloy chrome-plated sleeves. The crankshaft intake system ensures precise opening and closing times, surpassing reed valve intake systems in accuracy.
.Compatibility: Its installation dimensions match those of the 61-91 glow-type two-stroke engines, making it an ideal choice for kits requiring such specifications. Optional wrap-around exhaust pipes effectively reduce noise, making the GT17-Pro a favorite among RC enthusiasts in Europe and America.
.Premium Bearings: Built with top-grade bearings to ensure smooth and long-lasting operation, minimizing maintenance needs.

Specification:

.Material: Metal
.Model: GT17-Pro
.Cylinders: Single-cylinder
.Strokes: 2-stroke
.Cooling Method: Air-cooled
.Displacement: 16.91cc
.Bore: 29mm
.Stroke: 25.6mm
.Practical Speed Range: 1700-9500rpm
.Output Power: 1.98HP/9500rpm
.Tensile Force: 5kg
.Fuel: 92 # Unleaded Gasoline + Fully Synthetic 2T Lubricant
.Lubrication Ratio: Gasoline: Lubricating Oil =25:1
.Compression Ratio: 10:1
.Engine Weight: 690g
.Exhaust Pipe Weight: 91g
.Igniter Weight: 100g
.Igniter Power Supply: DC 9V-14.4V 1000mAh
.Applicable Spark Plug Model: 1/4-32 ME-8
.Recommended Propeller Specifications: 14×8, 15×8, 16×6-8 (Dual-blade)
.Product Weight: 690g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1030g
.Packing: Box
.Ages: 16+

Packaging List：

.Engine *1
.Exhaust Pipe *1
.Spark Plug *1
.CDI Ignition *1
.Mounting Bracket *1
.User Manual and Warranty Card *1
