TOYAN Engine 4 Stroke RC Nitro Engine Model Kit – Build Your Engine That Works

TOYAN Engine 4 Stroke RC Model Engine Kit – Build Your Engine That Works

Warm Tips:
The TOYAN FS-S100 Engine now is off-production and the new one will be released later. Here are TOYAN FS-L200AC Engine, TOYAN FS-L400 Engine and TOYAN V8 Engine for sale now. Any question, please email us at [email protected]

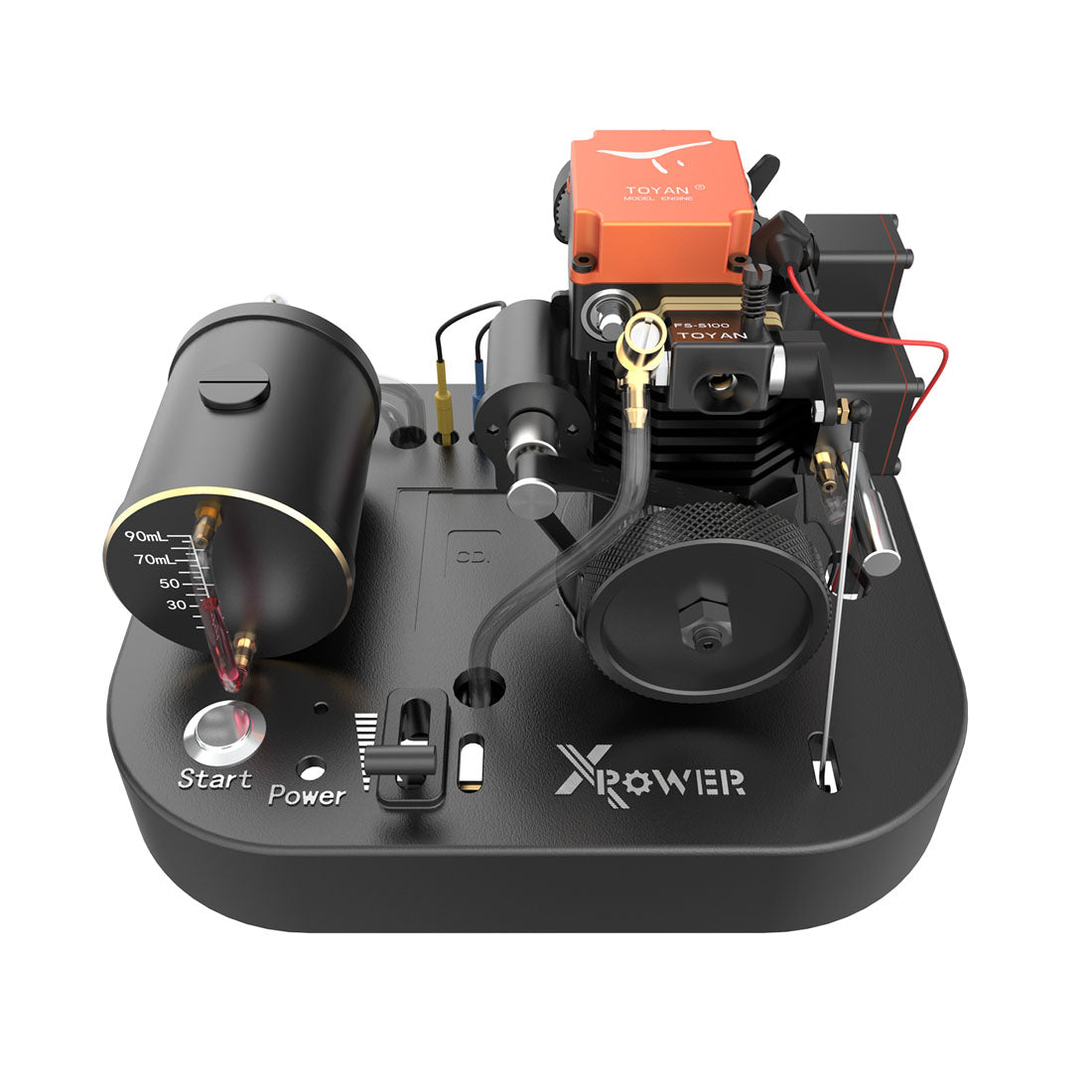

Toyan FS-S100 Methanol 4 Stroke RC Engine with Toyan Base Set (All Start Kit Included)

Note:
This engine has been upgraded to a T plug one, so the parcel doesn’t include the battery box, battery, and charger. We suggest buying a rechargeable 7.4V lithium battery if you need it.

Toyan Engine Set Including: Toyan FS-S100 Engine, Toyan Base ( with throttle push rod, throttle lever, one-button start button, metal tank) , Ignition Start Module, Spark Plug, Spark Plug Car.

Fuel: consisting of : 20% castor oil, nitro-methane 5-30%, and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol.

Specifications:
Material: Aluminium Alloy + Alloy Steel
Engine length x width x height: 100.5×85.4×86.5mm
Cylinder Diameter: 17.0mm
Piston Diameter: 16.6mm
Displacement: 3.5cc
Output Power: 0.5ps horsepower
Speed: 2500-13500rpm
Machine Weight: about 1.7kg
Starting Battery: 7.4V 20C lithium battery
Battery Capacity: 2400mAh
Charging Time: 4h
Fuel Tank Capacity: 90mL
Running Time: 40min
Product Weight: 1710g
Package Dimensions: 26 x 16 x 20cm
Package Weight: 2000g
Packing: Box

Package Including:
1Set x Toyan FS-S100 Engine Kit
