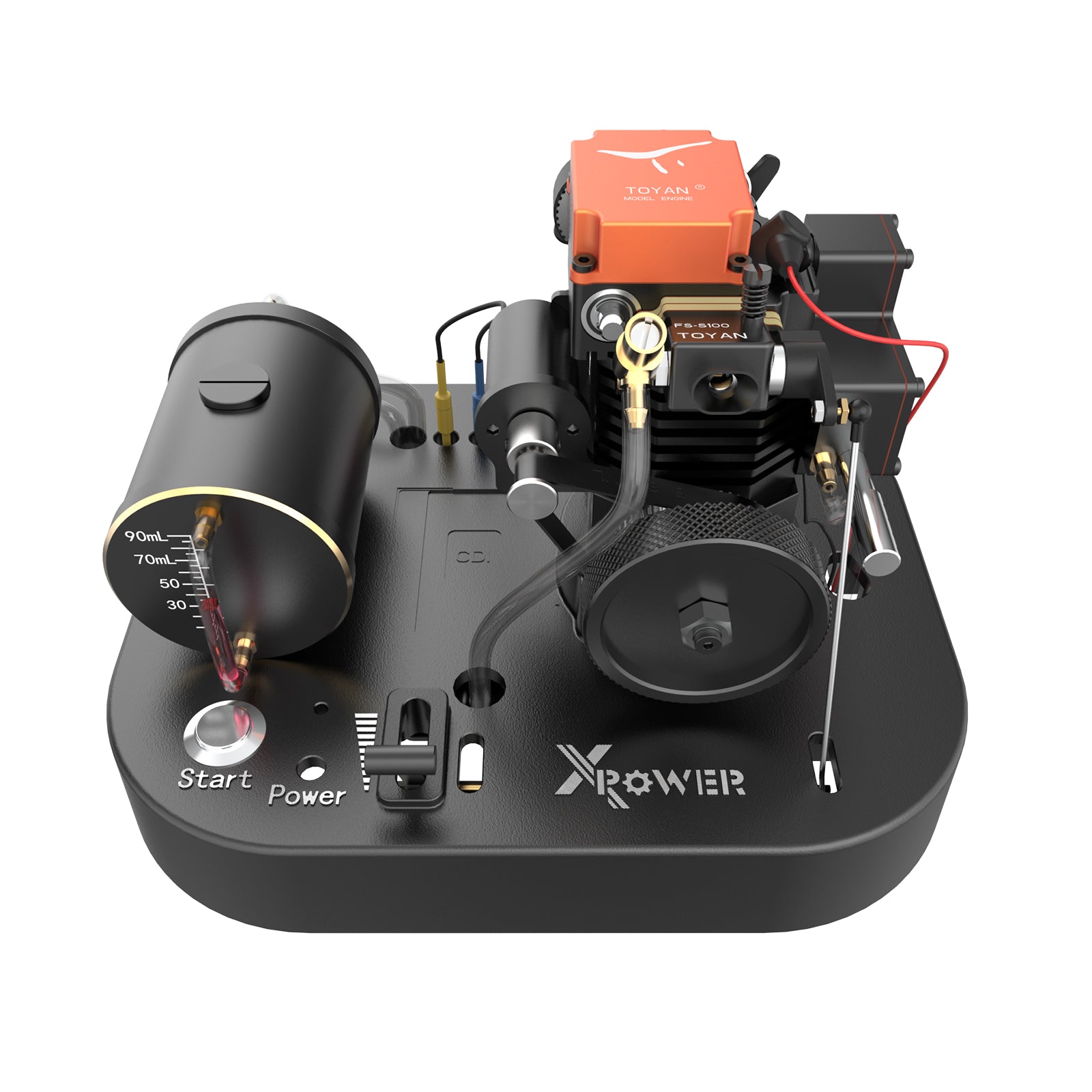

TOYAN Engine DIY RC Model Engine Kit – Build Your Own RC Engine that Works

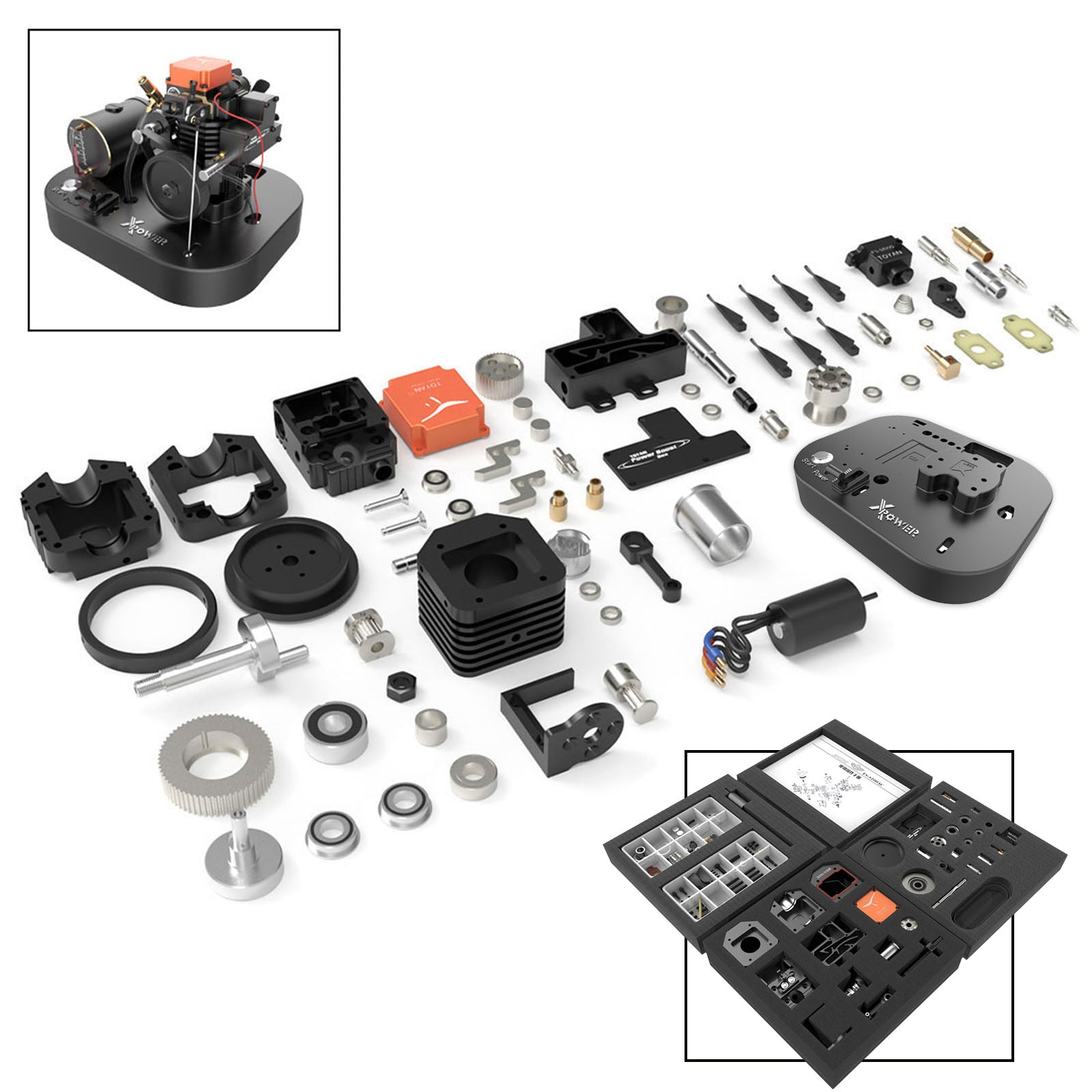

Toyan Engine Set Including: Toyan FS-S100AC Building Kit Engine, Toyan Base ( Fuel Tank, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button ) , 3-in- 1 ESC Module , Spark Plug.

All the required kits to make engine start, all included. When you get the set, you can start directly. ( Fuel: Methanol, needed to prepare by yourself ! )

Fuel: consisting of : 20% castor oil, nitro-methane 5-30%, and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol.

Note: This engine has been upgraded to a T plug version. So there is no battery box, battery, and charger. You can buy a rechargeable lithium battery if you need it. Any questions, feel free to contact us:  [email protected]

Specifications:
Material: Aluminium Alloy + Alloy Steel
Cylinder Diameter: 17.0mm
Piston Diameter: 16.6mm
Displacement: 3.5cc
Output Power: 0.5ps horsepower
Speed: 2500-13500rpm
Machine Weight: about 1.7kg
Starting Battery: 7.4V 20C lithium battery
Battery Capacity: 2400mAh
Charging Time: 4h
Fuel Tank Capacity: 90mL
Running Time: 40min
Product Weight: 1710g
Package Dimensions: 26 x 16 x 20cm
Package Weight: 2000g
Packing: Box

Package Including:
1Set x Toyan Engine FS-S100AC RC Engine Building Kit Set
