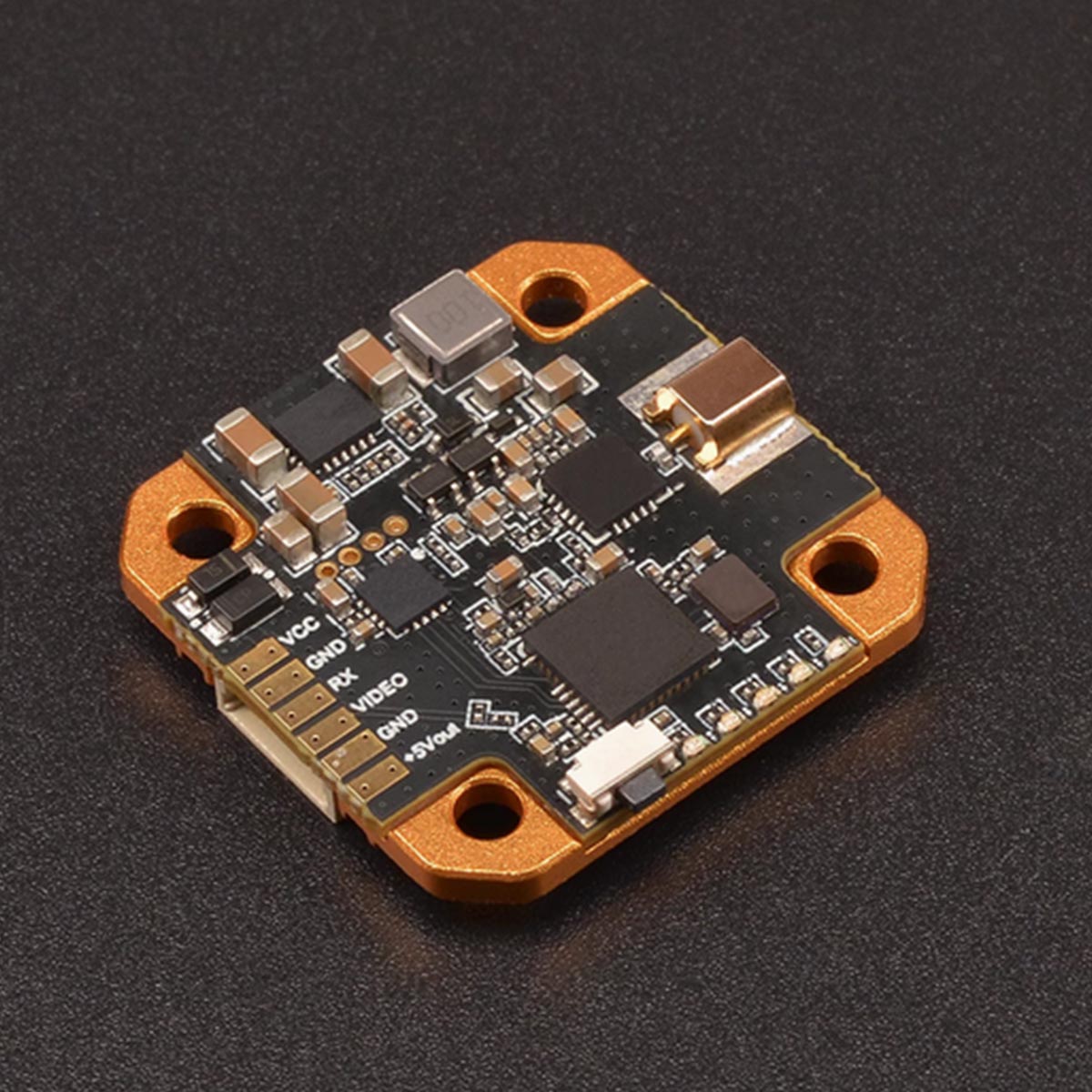

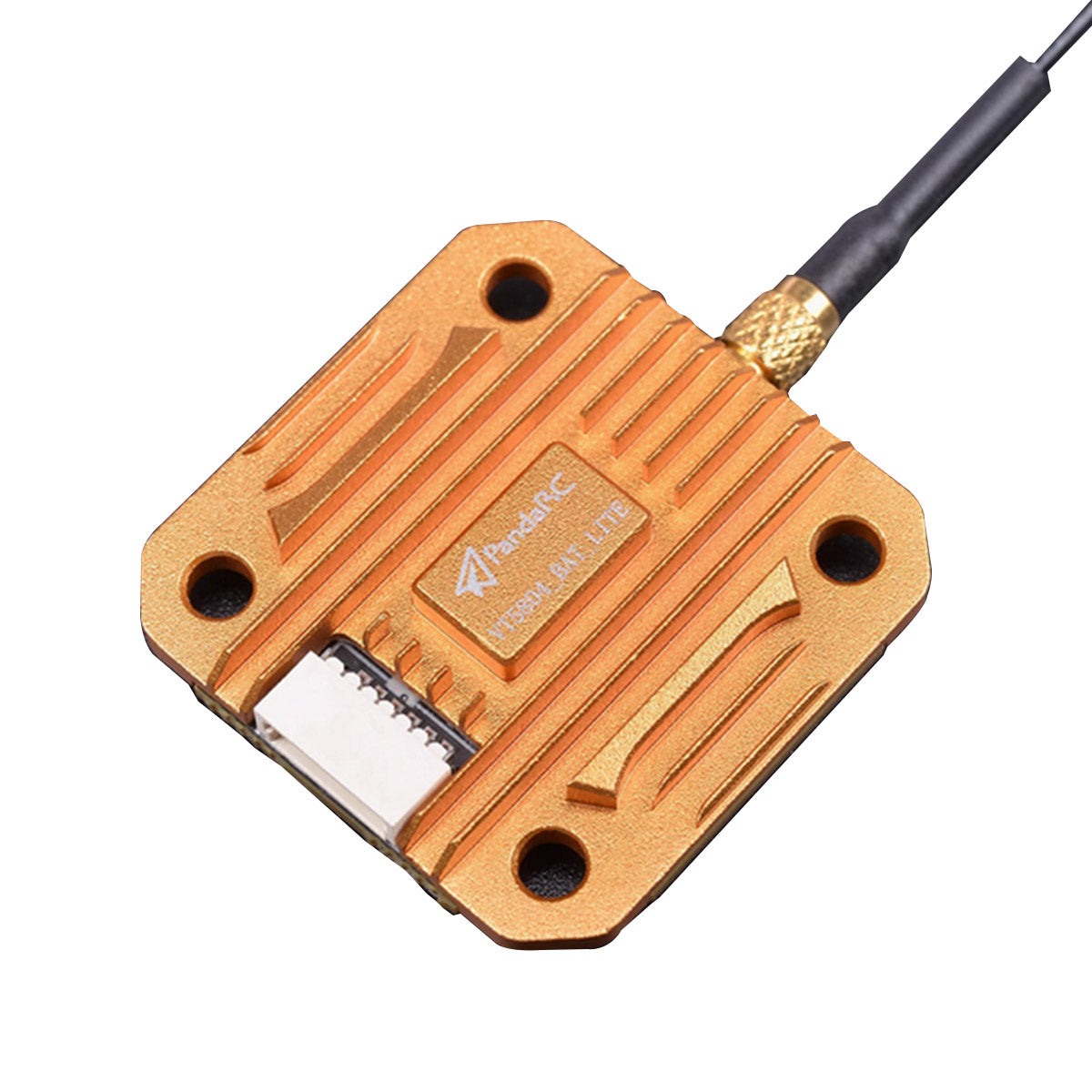

VT5804-BAT Lite 5.8G Low latency Video Transmission Module for T1 and T2 VTOL Fixed-Wing Aircraft

VT5804-BAT Lite 5.8G Low latency Video Transmission Module for T1 and T2 VTOL Fixed-Wing Aircraft

Features:

.This VT5804-BAT Lite 5.8G Low latency Video Transmission Module is for T1 and T2 VTOL Fixed-Wing Aircraft.

Specifications:

.Material: Alloy + Electronic Components
.Model: VT5804_BAT LITE
.Output Power: 0-25-200-400-800-1300mW
.Input Voltage: 6-36V
.Parameter Adjustment Method: button/OSD
.Working Current: 9V/750mA@1300mW
.Output Frequency: 40CH (A-B-E-F-R)
.Antenna Interface: MMCX
.Mounting Hole: 220mm*20mm
.Weight: 6 g (excluding antenna and power cord)
.Video Format: NTSC/PAL automatic detection
.Product Weight: 15g
.Package Weight: 50g
.Product Dimensions: 2.8 x 2.8 x 0.6cm
.Package Dimensions: 10 x 8 x 6cm
.Packing: Box
.Ages: 16+

Packing List:

.Video Transmission Host *1
.MMCX Antenna *1
.Adapter Cable (SMA Inner Hole) *1
.Connecting Cable (Plug Version) *1
.Connecting Cable (Welding Version) *1
