CISON V2 Engine V-twin 2-Cylinder 4-Stroke Air-Cooled Gasoline Engine Motorcycle RC Engine Model – Panhead & Shovelhead Collection

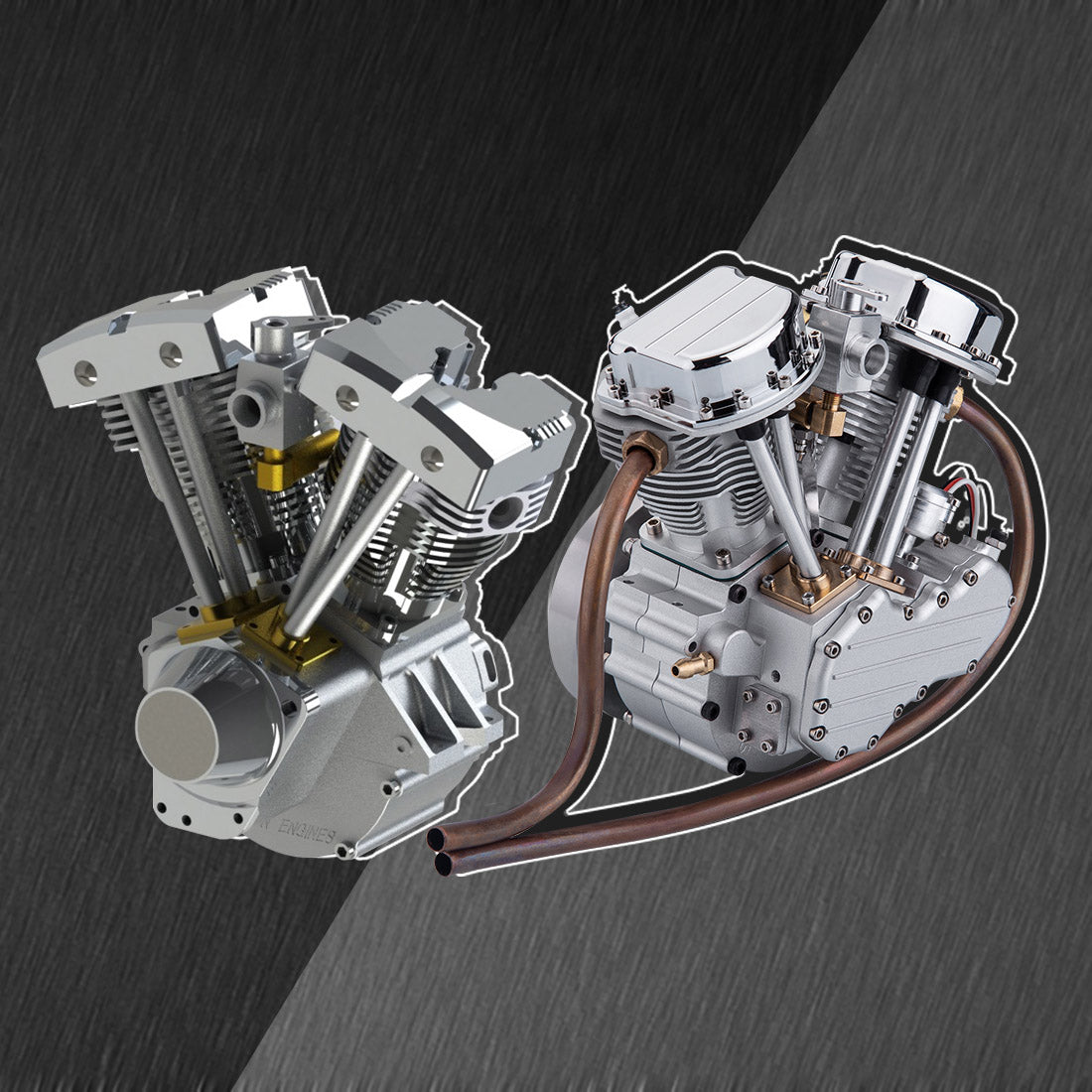

CISON V-twin Engine Collection – FG-VT9 9cc Panhead V2 Engine,  FG-VT157 15.7cc OHV Shovelhead V2 Engine

EngineDIY & Brand CISON are committed to the output of industrial culture, and strive to offer more and more high performance model engines to the fans and geeks. We keep specializing in mini scale model engines for both model building purposes. Currently, CISON released 5 engines and is keeping their path to produce more high performance model engines. In 2021, CISON launched L100 engine and motorcycle engine look panhead v2 engine. In 2022, CISON released FL4-175 flathead engine, shovelhead v twin engine and OHV L4 engine!
In September 2021, we launched the first panhead v2 engine, which was warmly received and highly praised by engine model lovers once released. Subsequently, sincere suggestions and strong expectations for the second v2 engine we have received from many model fans. So we decided to launch the new shovelhead v2 engine in November 2022. Add the FG-VT157 to the V2 series to make them an era mark that reappears in the history of motorcycle engines.
Continuing the style of the FG-VT9, the FG-VT157 V2 engine is designed with the basically same dimensions and some parts available for common use. However, we also put in some new design elements to make it unique, such as the classic & high simulated appearance, larger piston and cylinder liner, spherical combustion chamber, V-shaped angle valve, improved carburetor and so on.
You may like to read more about the story of the CEO of CISON, to the blog :

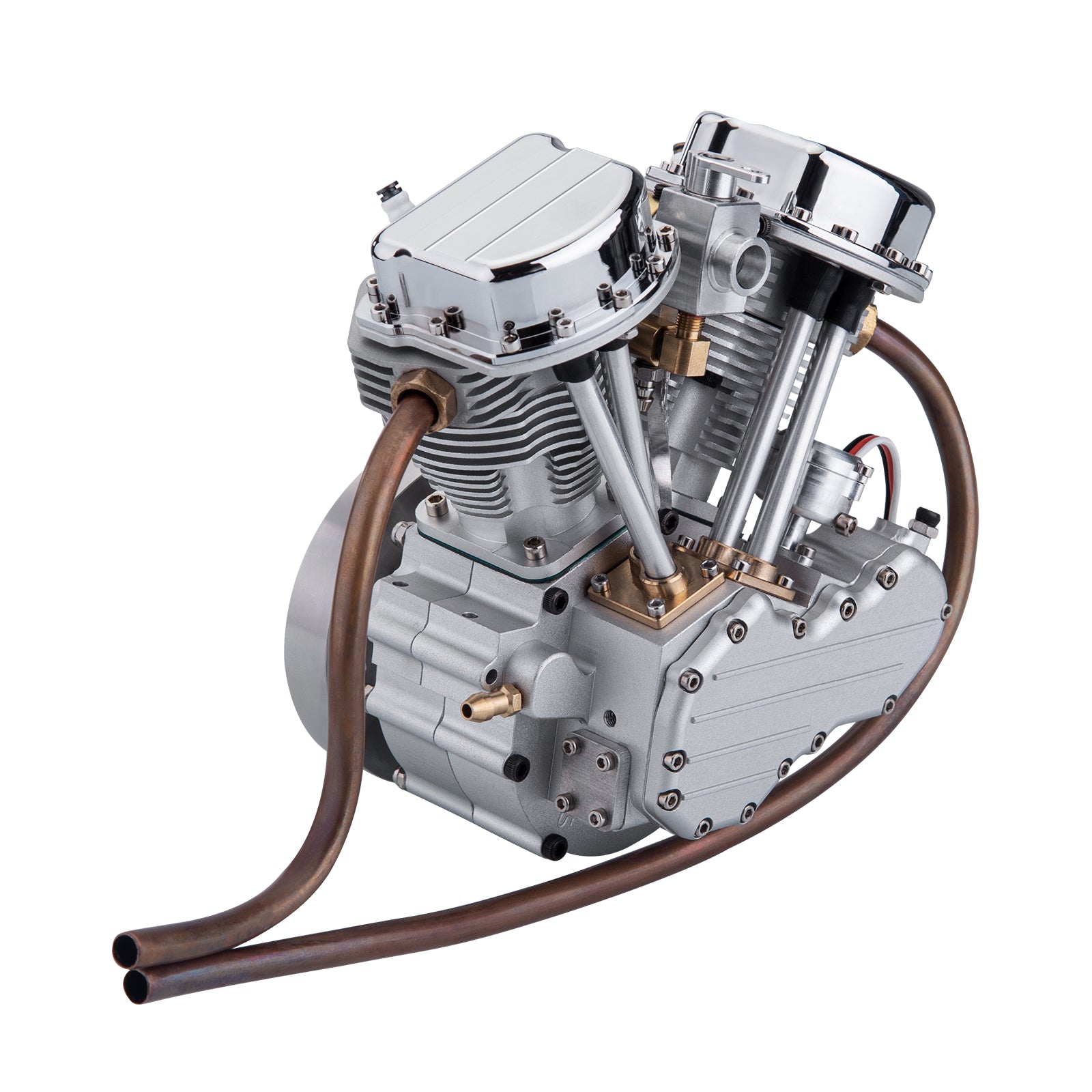

CISON FG-VT9 9cc Panhead V2 Engine

Know More About This V2 Engine:

.Material: Metal
.Brand: CISON
.Model: FG-9VT
.Item: V-type dual cylinder four-stroke gasoline engine
.Form: finished product (assembled)
.Cylinder: V-type twin-cylinder;
.Stroke: 4 strokes
.Displacement: 9(4.5*2)cc
.Bore: 16.67mm
.Stroke: 21mm; Angle: 45°
.Speed: 2000-8000rpm (Idle Speed Minimum: 1350rpm)
.Power: 0.8ps
.Starting power: 2S-3S lithium battery.
.Cooling method: air cooling
.Starting method: electric drill start
.Fuel: gasoline (mixed lubrication 25:1).
.Product Weight: 1500g
.Package Dimensions: 20 x 20 x 25cm
.Package Weight: 2000g

What You Get:
1 x V2 Engine
1 x Electric drill starter
2 x Spark plug
1 x CDI igniter
2 x Copper exhaust pipe
1 x Instruction

CISON FG-VT157 15.7cc OHV Shovelhead V2 Engine

Know More About This V2 Engine:

.Material: Metal
.Brand: CISON
.Item No: FG-VT157
.Form: Ready to Run
.Type: Gasoline Engine
.Valve Mechanism: OHV
.Displacement: 15.7cc
.Cylinder: V-Twin
.Stroke: Four Strokes
.Cylinder Diameter: 20mm
.Stroke: 25mm
.Angle: 45°
.Speed: 1500-8000 rpm
.Power: 0.8 ps
.Cooling Mode: Air Cooling
.Lubrication Method: Mix Lubrication (Gasoline/Engine Oil =30/1)
.Starting Mode: Electronic Drill Starting
.Ignition Method: CDI Igniter (Included)
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Including 2)
.Starting Power: 6-7.4V Battery (Not Included)
.Fuel Type: 92# Gasoline and Above
.Engine Oil Type: 2T Engine Oil
.Product Dimensions: 10.5 x 6.5 x 12.1cm
.Product Weight: 1500g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1700g
.Packing: Graphic Carton
What You Get:
1 x CISON V2 Engine
2 x Spark Plug
2 x Exhaust Pipe
1 x Electric drill starter
1 x CDI igniter
1 x Instruction
