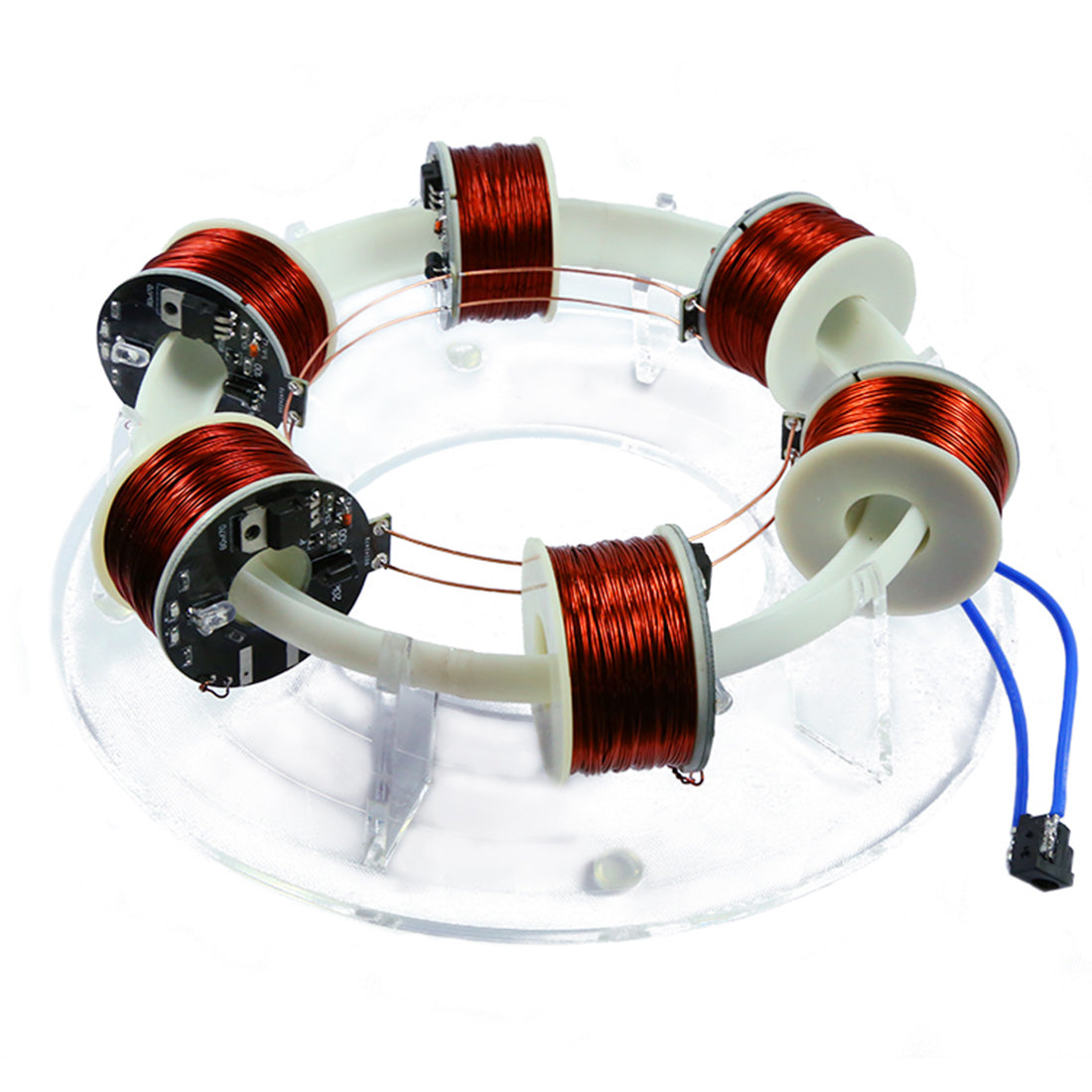

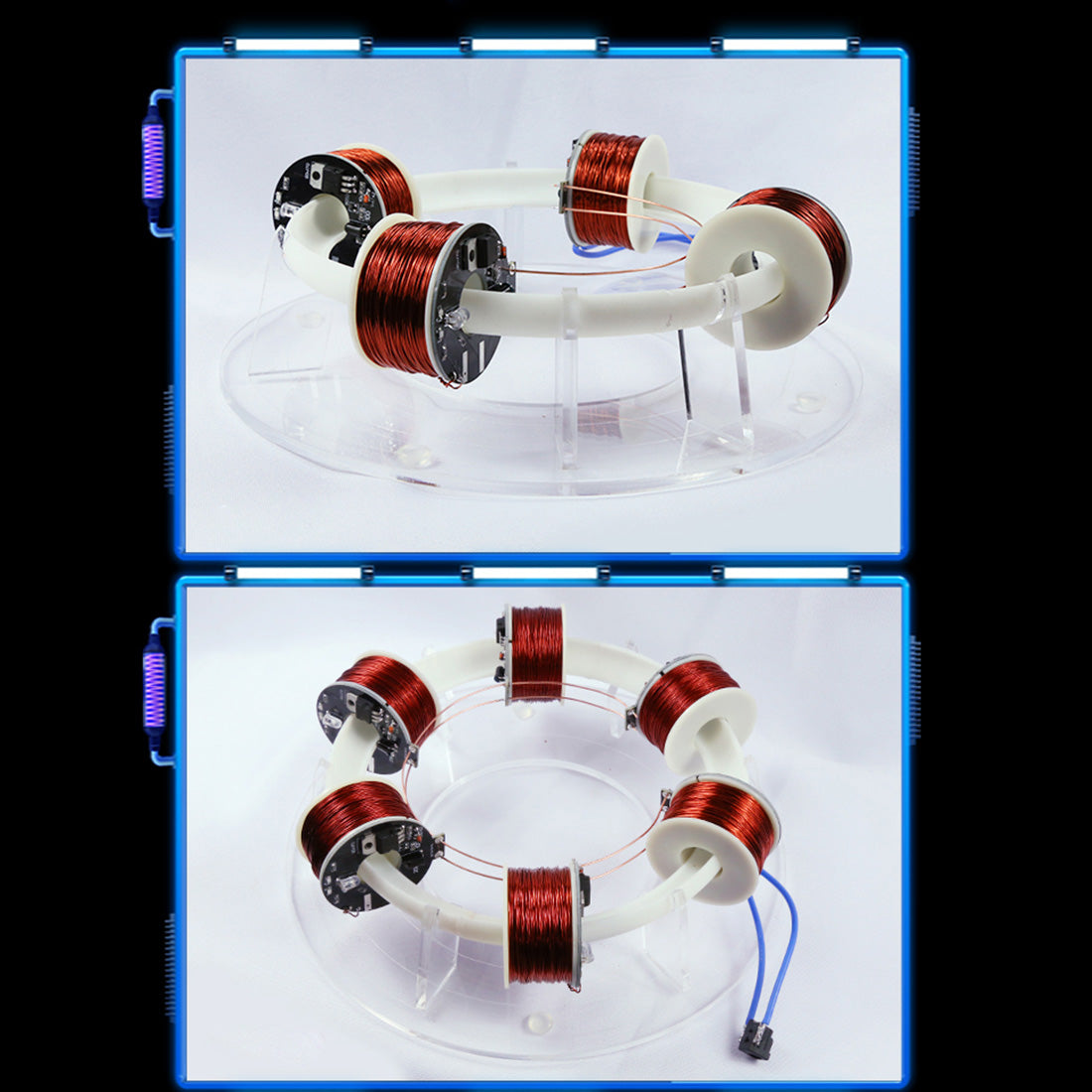

Stark 6 Coils Ring Accelerator Cyclotron High-tech Physics Model

Features:

.This product mainly studies the effect of cyclic acceleration in orbit. The more coils you have, the faster you accelerate, each coil is independently controlled by a circuit board without affecting each other.
.12V low voltage, safe and reliable. When long-term use of low power, coil does not heat.
.Infrared sensor, special circuit, long life, high accuracy, almost no delay
.Open track, easy to start, hand-driven, and intuitive, easy to demonstrate the principle
.Main Parts: Oxygen-free copper coil, 940nm infrared tube, 15mm high magnetic steel ball, 23cm circular track and transparent acrylic structure
.The ball is about 20-30 laps per minute in orbit.
.How to use: Connect the power supply, there will be a light, after the light is on, put the steel ball, push the steel ball into the track and pass any infrared tube, it can be triggered
.Attention: Please put it in a stable and smooth plane. Please do not use other voltage power supply to avoid burning out. Please keep track free of debris and deformation, so as not to affect the stability of operation. Acrylic is easy to be deformed and broken, please do not drop or put in the high temperature environment
.Significance: This product can be used for teaching demonstration, to explain the principle of the ring accelerator, or as a desktop technology decoration. It will be a geat gift for student and children to stimulate enthusiasm for learning and increase interest in science

Specifications:

.Color: As Shown
.Material: Metal + Acrylic
.Product Dimensions: 30 x 30 x 8cm
.Product Weight: 2419g
.Package Dimensions: 38 x 38 x 12cm
.Package Weight: 2600g
.Packing: Box

Package Content:

.1 x 6 Coils Ring Accelerator
