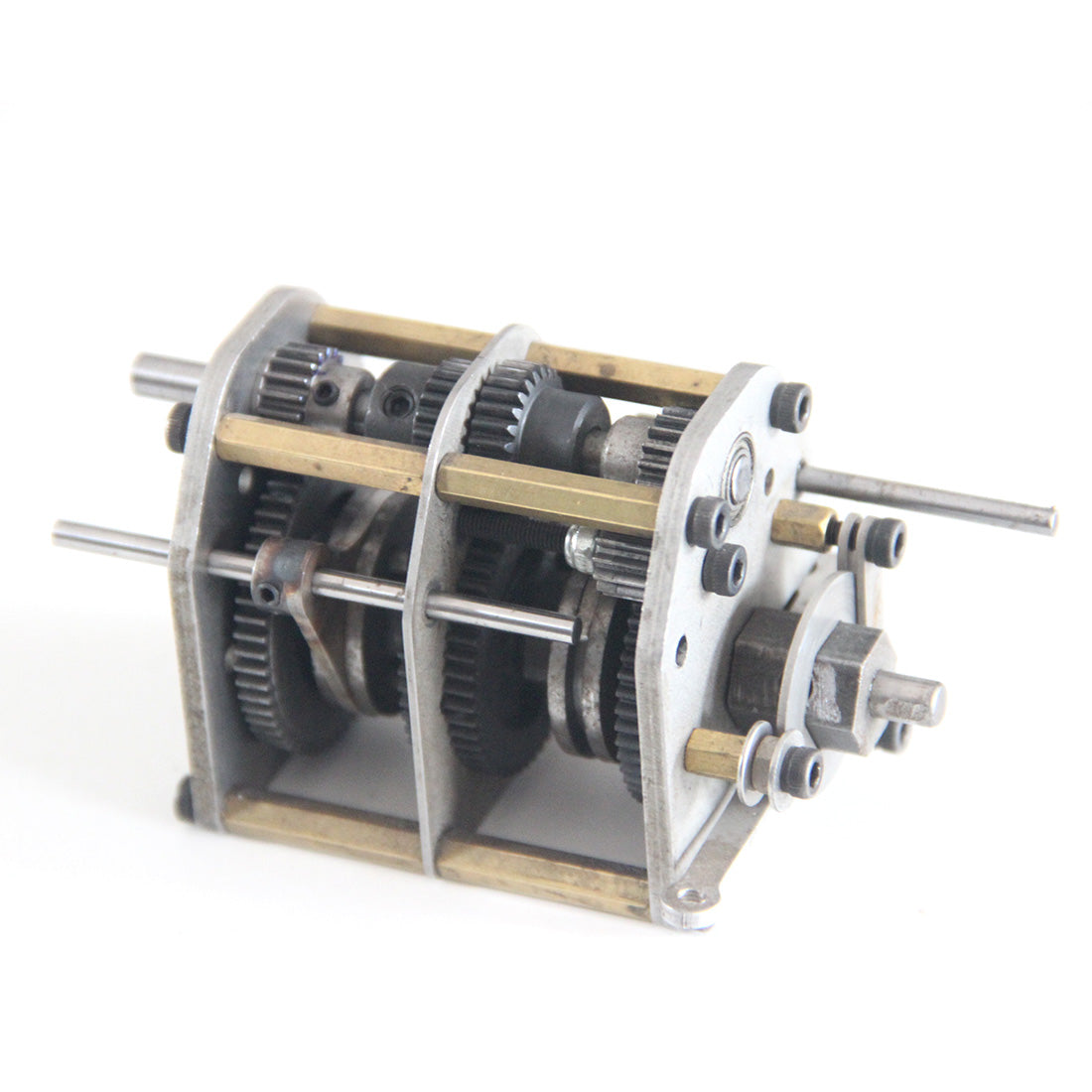

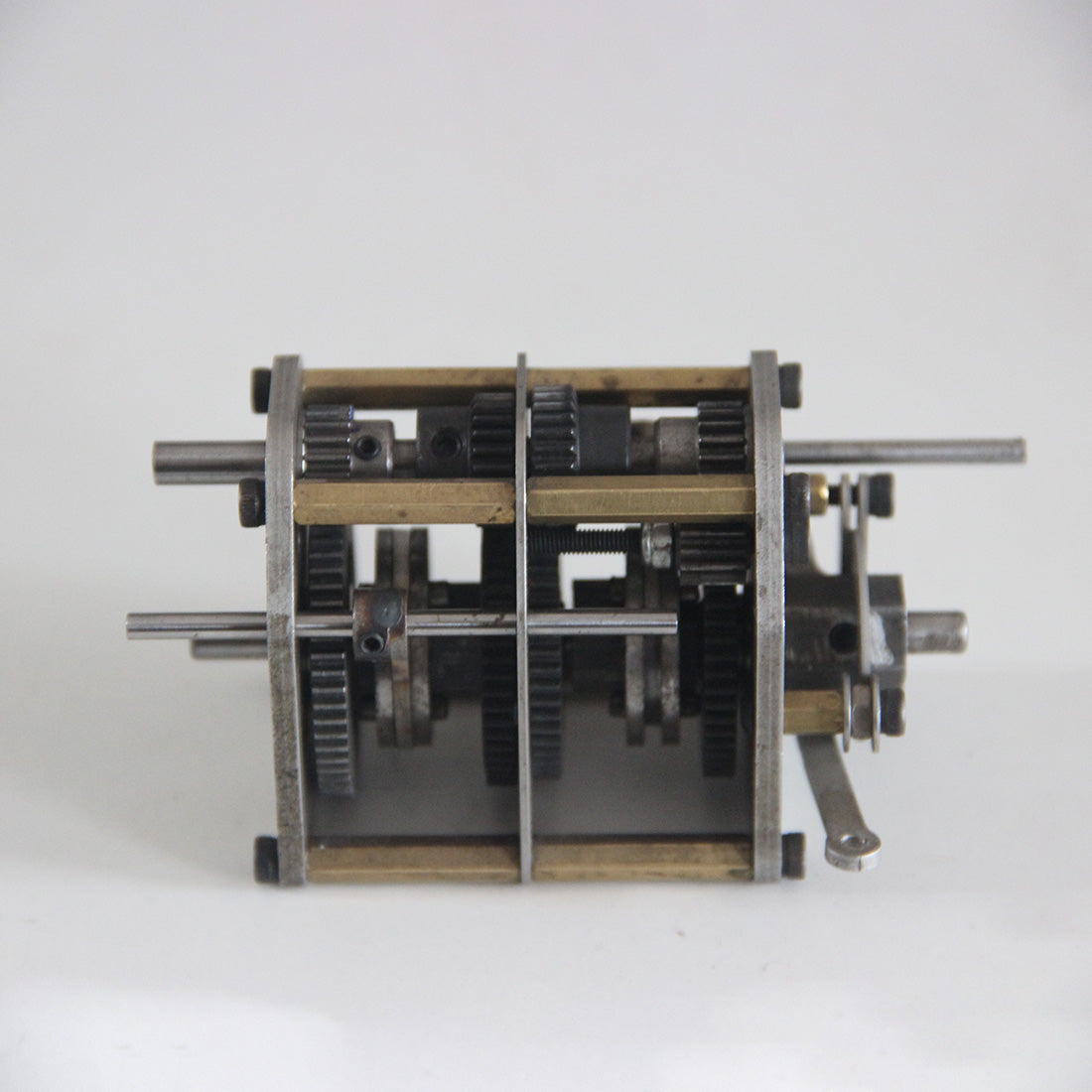

Four Gear Box Assembly DIY Modified Accessories for Methanol Engine RC Car Model

Four Gear Box Assembly DIY Modified Accessories for Methanol Engine RC Car Model (3 Forward Gears and 1 Reverse Gears)

Features:

.Gearbox Parameters: size: 88 x 44 x 53mm; shaft diameter: input shaft diameter 5mm, output shaft diameter 5mm, can be used with inner hole 5mm pulley and inner hole 5mm universal joint; speed ratio: first gear 59/19, empty gear, second gear 55/23, third gear 52/26, neutral gear, reverse gear 52/19.
.The four-speed gearbox assembly is made of all-steel gears and a stainless steel frame. It has three forward gears and one reverse gear.
.Application Use: DIY teaching experiment demonstration, self-made model car, boat, etc., four-speed gearbox is suitable for different speed models, using this product can also exercise the ability of manual brain, more applications can be developed by yourself.
.Tips: The use of this product requires a certain hands-on ability, does not provide specific instructions and technical support, purchase according to their own needs; due to DIY mechanical processing, the appearance will inevitably have minor scratches and small defects, but it does not affect the use, mind Shoot carefully.
.For Age:14+

Specifications:

.Color: As Shown
.Material: Metal
.Product Weight: 350g
.Package Dimensions: 10 x 8 x 6cm
.Package Weight: 380g
.Packing: Bag

Package Content:

.1 x Four Gear Box Assembly
