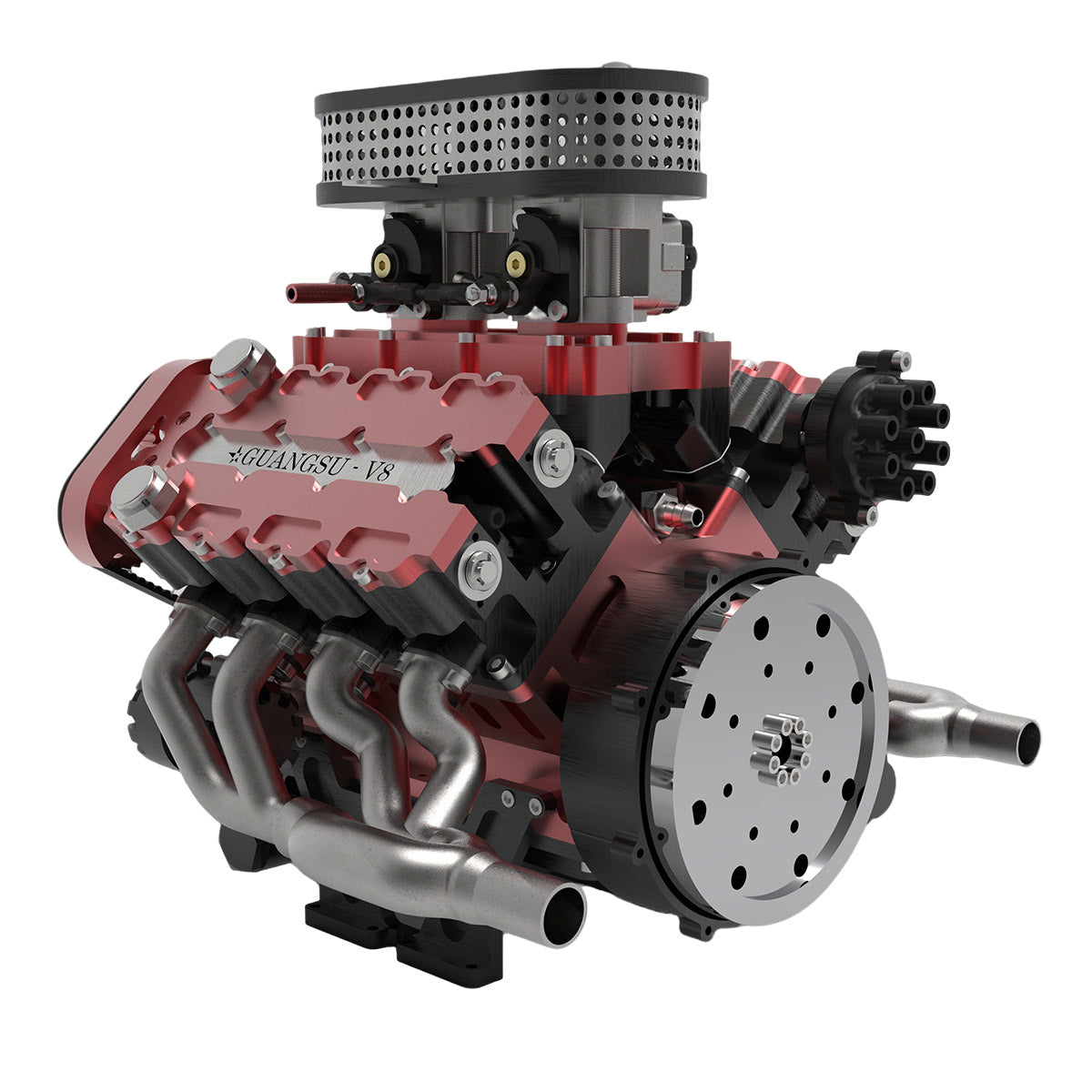

ENJOMOR V8 GS-V8 78CC DOHC Four-Stroke V-Shaped Eight-Cylinder Water-cooled Electric Gasoline Internal Combustion Engine Model – V8 Engine Model That Works

ENJOMOR V8 GS-V8 78CC DOHC Four-Stroke V-Shaped Eight-Cylinder Water-cooled Electric Gasoline Internal Combustion Engine Model – V8 Engine Model That Works – Presale

Model	GSV8-9078 V	GSV8
Gas Distribution Mechanism	DOHC	DOHC
Number of Cylinder Gas Doors (Single)	4	2
Piston	Three Rings (2 Gas Rings + 1 Oil Ring)	Three Rings (2 Gas Rings + 1 Oil Ring)
Gas Door Conduit	Integrated Type	Split Type
Gas Door Control Method	Lift Column Type	Swing Arm Type
Lubrication System	Independent Lubrication	Independent Lubrication
Oil Pump	Swing Pump	Gear Pump
Cooling Method	Wet Water Cooling	Wet Water Cooling
Cylinder Cover Water Cooling	Yes	No
Water Pump	Vane Pump	Gear Pump
Water Pipe Joint	Large Flow Tight Joint	Pagoda Head
Intake Volume	Intake > Exhaust	Intake = Exhaust
Cylinder Cover Tightening	15 Cylinder Cover Tightening Bolts	8 Cylinder Cover Tightening Bolts
Exhaust Pipe	Metal Printed Integrated Exhaust, Modifiable Silencer	Welded Integrated Exhaust
Flywheel Housing	Yes	Yes
Timing Belt Guard	Yes	No
Oil Filter Clearance	Yes	Yes
Self-contained Generator	Yes	No
Engine Bracket	Aviation Bracket	Ordinary Bracket
Splitter	Hidden	Semi-hidden
Splitter Pre-angle	Freely Adjustable	Fixed Adjustment Range
Water Pump Drive	Synchronous Tight Drive	O-belt Drive
Housing Surface Treatment	Aviation Gray	Black
Intake Pipe	Intake Port Enlarged	Conventional
Intake Valve	Yes	No
Timing Belt Tension Degree	Adjustable	Non-adjustable
Crankshaft	High-precision Crankshaft	Cast Crankshaft
Number of Vent Valves	4	2
CDI	High-frequency Pressure CDI	Ordinary CDI
Packaging	Aviation Transparent Packaging	Wooden Box
Modification Parts: Turbocharging	Yes	No
Modification Parts: Gearbox	Yes	No
Modification Parts: Mechanical Chassis	Yes	Yes
Modification Parts: Generator	Yes	Yes

EARLY BIRD PRICE – ENJOMOR V8-G52 ENGINE FOR PRE-SLAE NOW!

Best Offer Right Now!
1. Early Bird Price：$2499.99, Save $400!
2. 20% Off Discount for ENJOMOR V8 Engine Parts
3. when Pay with PayPal, that is to say, you will get USD $125 gift card.
4. : Customized v8 pendant values $29.99 as a gift!
5. Gift 2 – 8Pcs Spark Plug
6. DHL Free
7. Special Gift from EngineDIY

About Delivery:
This V8 engine is for PRE- SALE now! The parcel will be shipped out at the middle of Dec. Order First, Get First!
The greatest gift for the year of 2022!

Parameters:
.Material: Metal
.Brand: ENJOMOR
.Item NO.: GS-V8.
.Status: Finished Version
.Type: Gasoline Internal Combustion Engine
.Valve: DOHC
.Displacement: 78cc
.Cylinder: V-shaped Eight-cylinder
.Stroke: Four-stroke
.Bore: 22.9mm
.Stroke: 20.00mm
.Output Shaft Diameter: 10mm
.Compression Ratio: 1/14
.Maximum Speed: 9000rpm
.Maximum Power: 3.8kw
.Cooling: Water-cooling
.Lubrication: Independent Lubrication (Oil Pump Lubrication)
.Starting: Electric Starting (with Brushless Starter Motor)
.Ignition: CDI igniter & Distributor
.Spark Plug Type: ME8 Spark Plug with 1/4-32 Thread
.Ignition Voltage: 10-12V
.Starting Power: 24-48V Battery (Not Included)
.Fuel: 95# Gasoline
.Oil: 20W and above, Oil Volume: 50ml
.Product Dimensions: 13.6 x 17.9 x 13.8cm
.Product Weight: 4500g
.Package Dimensions: 35 x 20 x 20cm
.Package Weight: 5500g
.Packing: Box

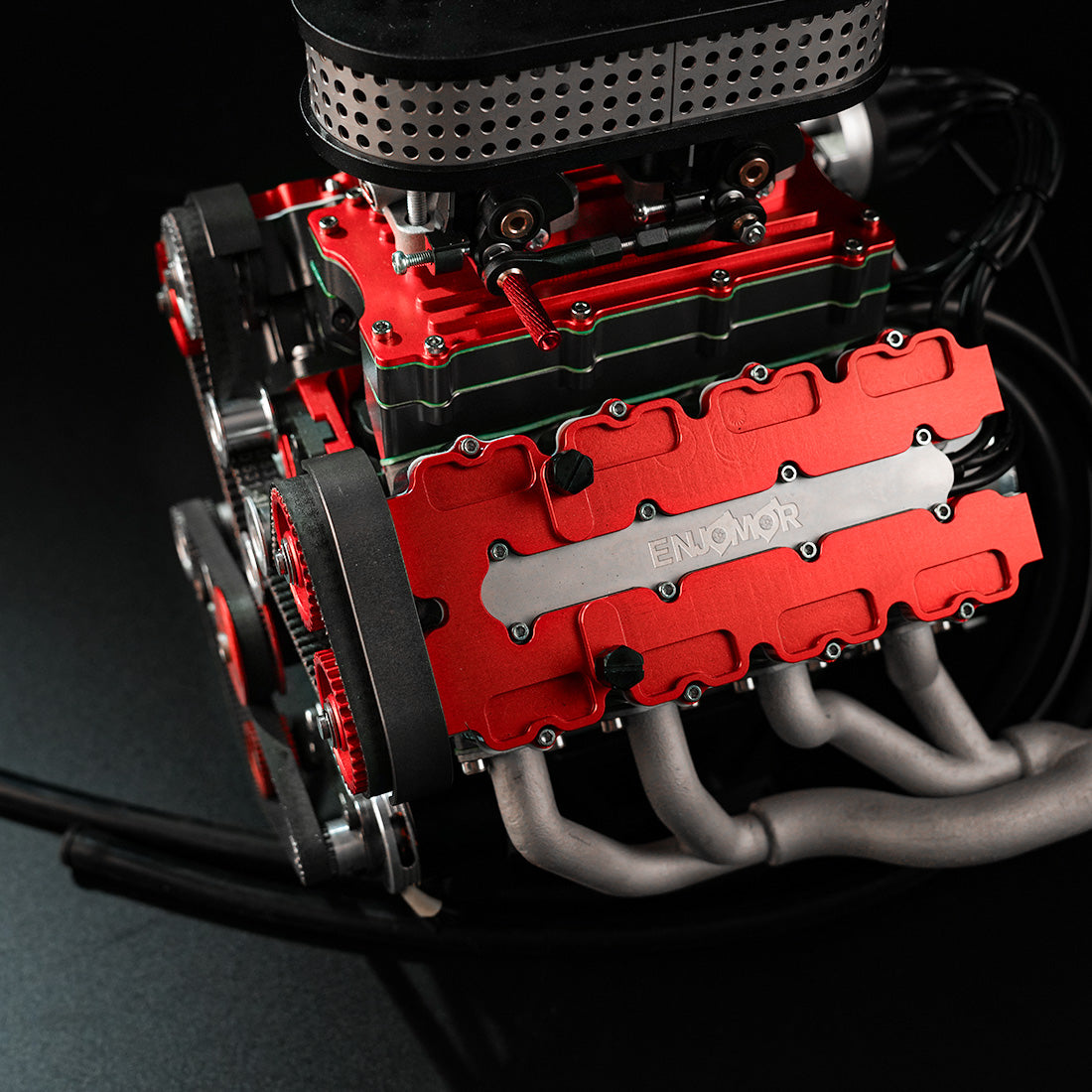

Know More about ENJOMOR V8 Engine:

.Features the DOHC valve mechanism, exposed timing belt and perfect size & appearance for a high level of performance for extraordinary power.

.Independent Lubrication System:
The oil pump pumps recyclable oil to the top CAM of the engine for lubrication.

.The side water-cooling pump provides effective heat dissipation, which helps extend the working time and service life of the engine.

.Designed with the hall-type CDI pulse split ignition and 3548 brushless starter motor, the engine boasts one-key operation for added convenience.

.With the housing made of full aluminum CNC in precision manufacturing, the engine boasts the realistic appearance, integrated exhaust manifold and true engine sound.

.Adopts three piston rings (gas ring, taper ring&oil ring) and another oil ring made in 32 processes to ensure the compression force in the cylinder for higher combustion efficiency.

.Comes with the super hard piston cylinder liner and one-piece crankshaft with full bearing support (three big bearings in the middle, small bearings at both ends) for outstanding strength and durability.

.Designed for a wide range of applications, the engine can be used to refit large-scale model cars, boats, tanks, and is also suitable as a desktop DIY engine model to play.

.The excellent reliability and working performance of the amazing engine model make it a popular mechanical artifact among high-end collector engine users and it will get more praise from model engine enthusiasts.

.The following additional ignition and water cooling parts are required for the engine model: one cdi ignition, supply voltage of 10-12V, one 80A ESC, supply voltage of 38-48V (10-12S Battery), one fuel tank, one fuel pipe, one cooling fan and one water cooling pipe.

Age Recommendation: 18+

Package List:
1 * ENJOMOR V8 Engine
8 * Spark Plugs
1 * V8 Pendant
1 * Gift Card
1 * Special Gift from EngineDIY
