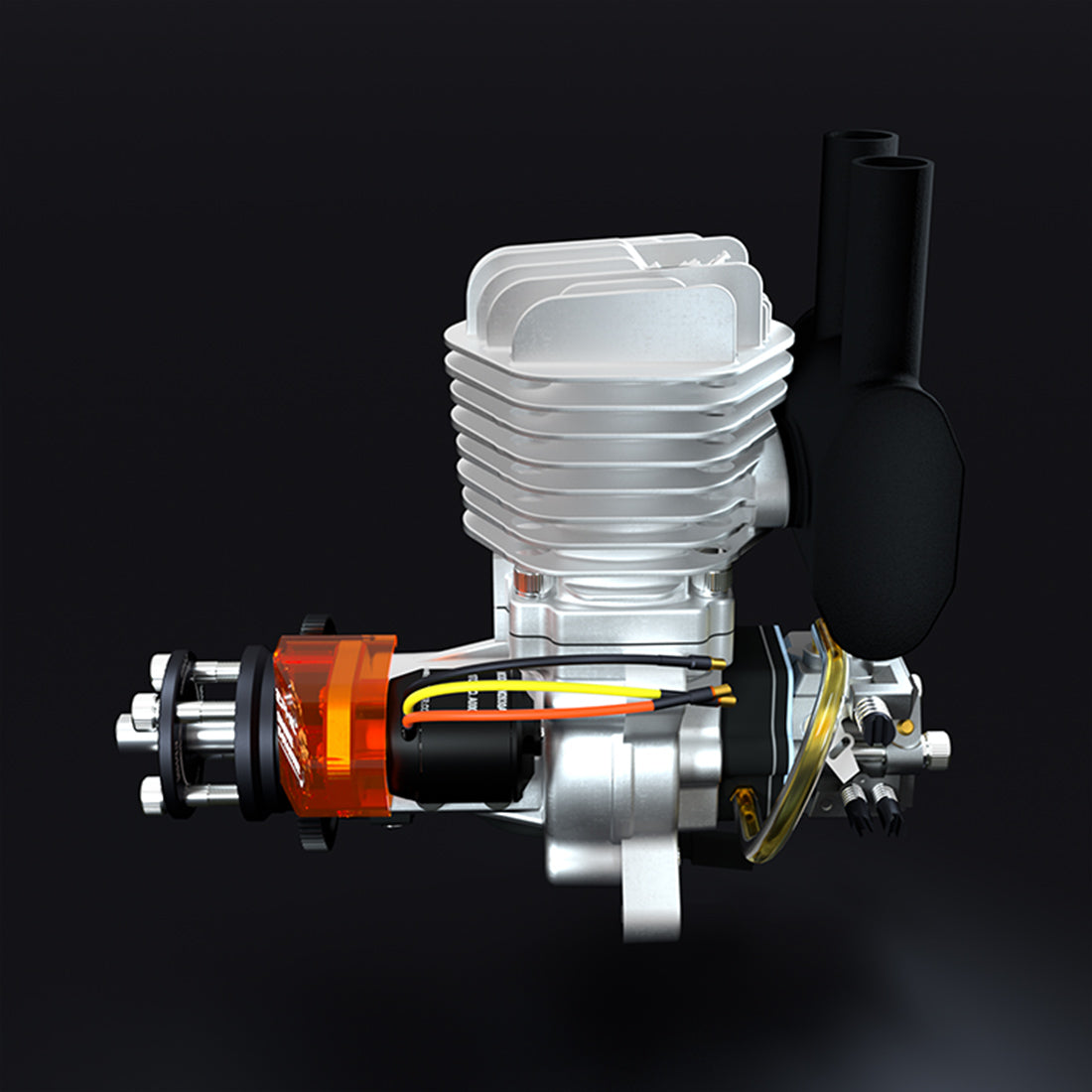

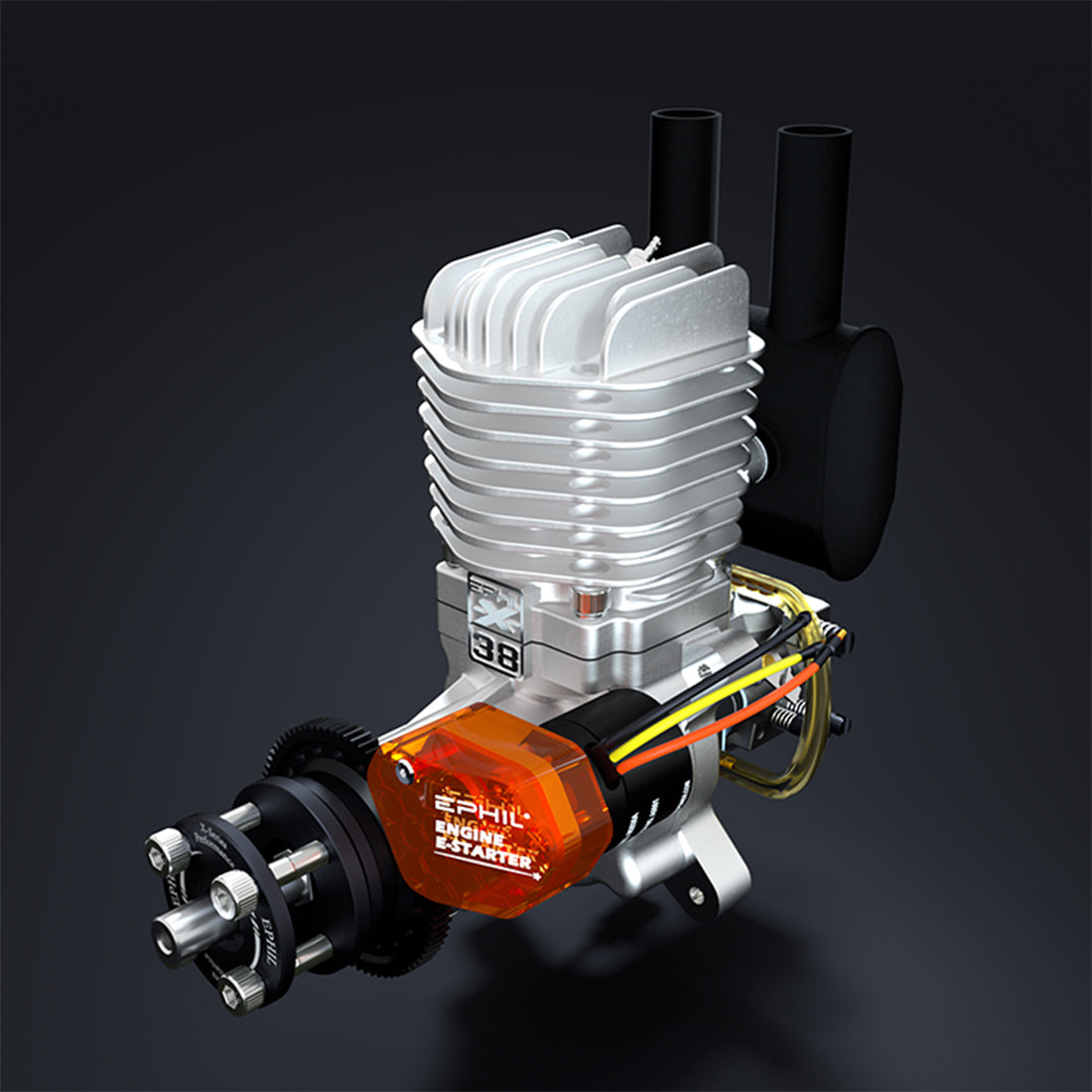

EPHIL XG-38cc-R Pro Electric Starter Glow Plug Two-Stroke Single Cylinder Side Exhaust Gasoline Engine Model for Fixed-Wing Aircraft Models

EPHIL XG-38cc-R Pro Electric Starter Two-Stroke Single Cylinder Side Exhaust Gasoline Engine Model for Fixed-Wing Aircraft Models

Features:

.EPHIL XG-38cc-R Pro, a high-performance gasoline engine model meticulously engineered for fixed-wing aircraft enthusiasts. This two-stroke, single-cylinder engine is designed with precision manufacturing to ensure stable operation, exceptional quality, and robust power output.
.One of the standout features of the EPHIL XG-38cc-R Pro is its upgraded Pro engine with electric start capability. Equipped with an electronic control system, this engine allows for a seamless one-button start, making your setup quick and hassle-free. Extensive testing and positive user feedback underscore its dependability and superior performance.
.The standard glow plug included with this engine enhances stability in high-temperature and high-pressure cylinder environments, significantly outlasting conventional spark plugs. This ensures your engine runs smoothly and efficiently for extended periods.
.Additionally, the EPHIL XG-38cc-R Pro comes with a specially designed exhaust pipe that can be easily connected to a smoke system, enabling spectacular smoke trails that brights the sky like shooting stars. This feature adds a visually stunning to your flight experience, making every takeoff and maneuver even more captivating.
.Compatible with a wide range of fixed-wing aircraft models, delivering powerful and consistent performance. The EPHIL XG-38cc-R Pro is your trusted partner in the skies, providing the power and reliability you need to achieve outstanding flight results every time.

Specifications:

.Material: Metal
.Brand: EPHIL
.Model: XG-38cc-R Pro
.Displacement: 38cc (2.33 cu in)
.Performance: 4.2 HP
.Speed Range: 1800-7300 RPM (Tested Paddle-20*9)
.Bore: 39 mm (1.54 in)
.Stroke: 32.5 mm (1.28 in)
.Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)
.Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)
.Compression Ratio: 9:1
.Lubrication Ratio: 30:1 (Gasoline: Lubricating Oil)
.Ignition Voltage: 6-14V
.Glow Plug Type: E8 (or OS G5) Heating Element
.Recommended Propeller:19×8; 19×10; 20×8; 20×10
.Weight of Main Engine: 1216g
.Weight of Muffler Set: 73g
.Weight of Aluminum Standoffs Set: 100g
.Weight of Glow Plug: 3.6g
.Weight of CDI(Ignition): 30g
.Weight of Starter: 85g
.Weight of ESC: 36g
.Total Weight: 1542.5g (3.4lb)
.Product Dimensions: 18.91 x 8.5 x 16.73cm
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1750g
.Packing: Box
.Ages: 16+

Packaging List:

.Engine *1
.Exhaust Pipe *1
.CM6 Spark Plug *1
.CDI Igniter *1
.Engine Mount *1
.Paddle Shaft Adapter *1
.Gear-Driven Paddle Shaft *1
.Electric Starter *1
.ESC *1
.User Manual & Warranty Card *1
