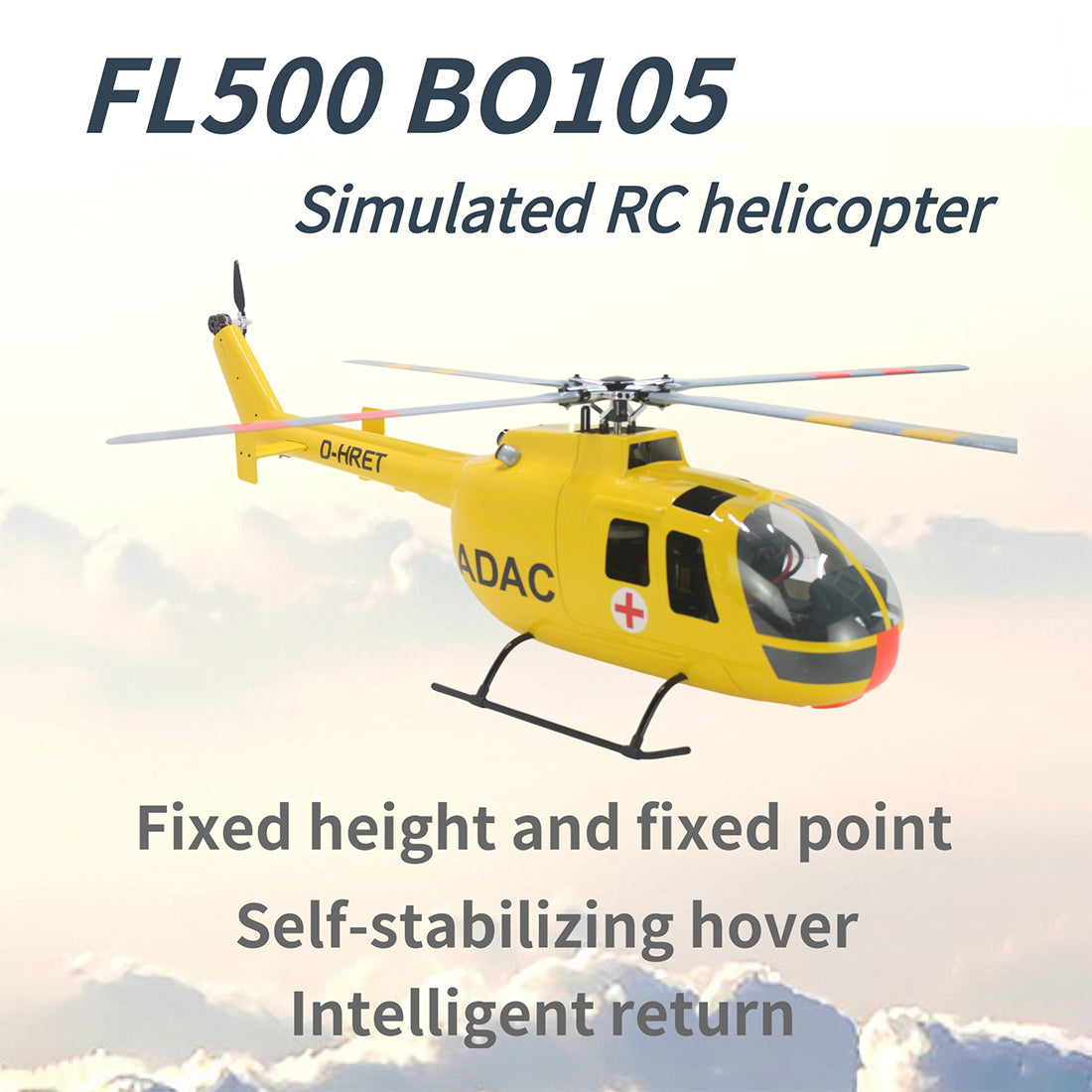

FL500 BO105 500-Class 2.4G 6CH Scale RC Helicopter with L7 Flight Controller & 4-Mode GPS Positioning

FL500 BO105 500-Class 2.4G 6CH Scale RC Helicopter with L7 Flight Controller & 4-Mode GPS Positioning

Product Information:

Experience unmatched realism with FL500 BO105 500-class RC helicopter. Authentic design, realistic cockpit, 6CH, advanced flight performance. FLISHRC L7 flight controller, 4-mode GPS for stability, ideal for enthusiasts & skilled pilots.

Power Type: Electric
Fuselage Material: Fiberglass
Fuselage Dimension: 990*288*340mm
Main Rotor Diameter: 980mm
Tail Rotor Diameter: 168mm
Tail ESC: 35A Tail ESC
Motor: FLISHRC High Performance Main Motor
Fly Controller: FLISHRC L7 Fly Controller
Motor Control: FLISHRC 85A ESC
Servo: FLISHRC FL390 Semi-metal Servo
Battery: 4500mAh 6S 60C
Recommended Environment: Outdoor

More Details:

1. High-precision rotor head: CNC machined high-precision DFC rotor head, its metal texture brings a great improvement in the sense of view. The high precision is also effective in reducing vibration and wear during flight, and the low center of gravity and compact structure of the DFC rotor head can provide better power performance.

2. Highly simulated appearance details: The appearance details of the real EC135 helicopter are restored as much as possible, and its nearly equal ratio of exhaust holes, windows, front windshield, etc. are all shown in front of your eyes, which brings an incomparable sense of realism.

3. Unique Tail Culvert: The tail culvert design is the same as that of the real EC135 helicopter, which ensures sufficient thrust and unique aesthetics at the same time.

4.FLISHRC exclusive L7 flight control. Adopting H7 processor, the operating frequency is up to 480MHz, the processing power is 4 times of the STM32F405 processor commonly used in other flight control, so that the flight control has a more rapid data processing ability. H7 processor also has a double-precision floating-point unit, to achieve higher precision control.

5.GPS positioning module has advanced BeiDou, GPS, Galileo, QZSS four-mode positioning capabilities, through the fusion of multiple positioning systems, effectively improving the positioning accuracy, reliability and anti-jamming capabilities. l7 flight control + four-mode positioning GPS, the two strong combination. L7 flight control + quad-mode positioning GPS, the two strong combination brings faster star search speed, more accurate positioning ability, more stable flight, more smooth operation.

6. Fixed height and point, self-stabilized flight, novice gospel: through the L7 flight control of high-precision calculations and GPS accurate positioning, so that the helicopter in the air can easily realize self-stabilized flight, fixed height and point and other functions, to do that push the stick that is to go, let go of both stop. There is no need to adjust the helicopter’s flight attitude through additional operations. Not only can novices easily control, feel the charm of flight, old players can also get rid of the cumbersome operation, enjoy the beautiful flight attitude like the real aircraft.

7. High-performance sensor onboard dual-channel IMU: equipped with dual-channel ICM42688P IMU, SPL-06 barometer, high-performance and high redundancy design combinations to bring higher data accuracy and stronger anti-interference, more secure and reliable. Built-in shock absorption design, effectively reduce the data error caused by vibration, so that the flight control can always get accurate data. Support bluetooth parameter adjustment function, debugging is more convenient.

FLISHRC L7 flight control functions:

1.GPS self-stabilization mode
2.Attitude mode
3.6G mode
4.Low battery return
5.One key return
6.Runaway return
7.bluetooth reference-digital transmission
8. BeiDou, GPS, Galileo and QZSS satellite four-mode positioning

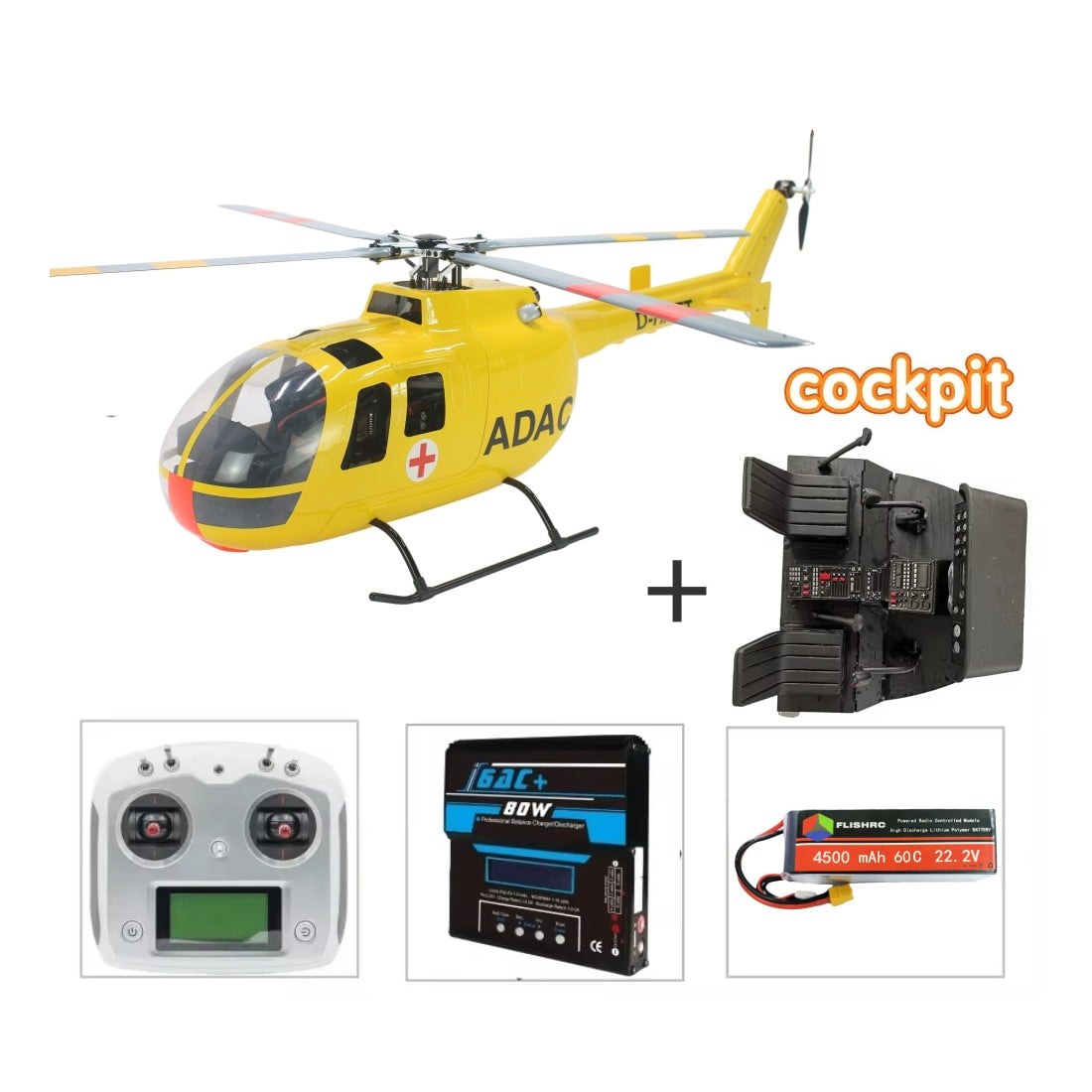

Product List: (Due to the large size of the product, the chassis and others are shipped in separate packages. Need to assemble it by yourself after receiving the goods, please contact customer service for assembly video:  )

Package 1:
Helicopter fuselage*1
Cockpit *1
Package 2:
Helicopter internal components
Remote control*1
4500 mAh 6S 60C Battery *1
Charger *1
Receiver *1
Screwdriver *1

Applicable age: 18+

Note: RC model helicopter belongs to the high-risk dangerous products, flight must be away from the crowd, man-made assembly is improper or unfamiliar with the operation; damage to parts, electronic control equipment, as well as unfamiliarity with the control, may lead to uncontrolled flight damage and other unpredictable accidents, please be sure to pay attention to the flight safety of the flyer, and need to understand the responsibility for any accident caused by negligence. Before each flight, be sure to carefully check the main rotor clamp cross shaft screws, tail rotor clamp screws, and all parts of the fuselage ball head, screws, and make sure that the glue is locked before you take off the airplane to fly.
