FLISHRC FL500 EC135 500-Class 2.4GHz 6CH Scale RC Helicopter – L7 Flight Controller & 4-Mode GPS Precision Positioning (RTF)

FLISHRC FL500 EC135 500-Class 2.4GHz 6CH Scale RC Helicopter – L7 Flight Controller & 4-Mode GPS Precision Positioning (RTF)

Product Information:

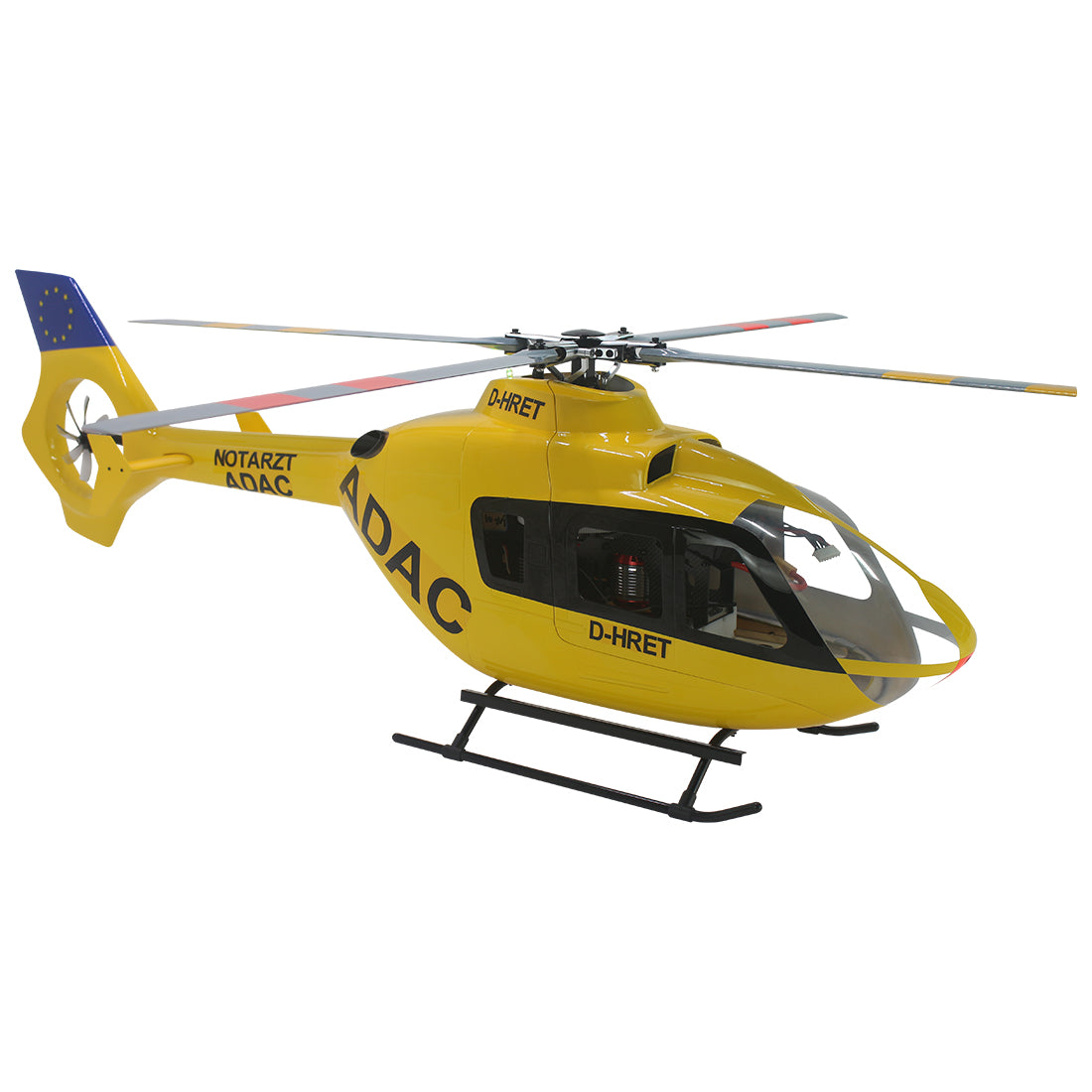

Experience unparalleled realism and precision with the FL500 EC135 500-Class RC Scale Helicopter. This 2.4GHz, 6CH model boasts an exquisitely detailed EC135 fuselage, a CNC-machined DFC rotor head for smooth and stable flight, and FLISHRC’s cutting-edge L7 flight controller, powered by a high-speed H7 processor. With four-mode GPS positioning (Beidou, GPS, Galileo, QZSS), it ensures rapid satellite acquisition, precise hovering, and robust anti-interference capabilities. Whether you’re a beginner seeking effortless, self-stabilizing flight or an expert craving authentic scale details and top-tier performance, the FL500 EC135 is the ultimate RTF (Ready-to-Fly) helicopter.

Power Type: Electric
Fuselage Material: Fiberglass
Fuselage Size: 1020*160*350mm
Main Rotor Diameter: 980mm
Tail Rotor Diameter: 168mm
Tail ESC: 35A Tail ESC
Motor: FLISHRC High Performance Main Motor
Flight Control: FLISHRC L7 Flight Control
Motor Control: FLISHRC 85A ESC
Servo: FLISHRC FL390 Semi-metal Servo
Battery: 4500mAh 6S 60C
Recommended Environment: Outdoor
FLISHRC L7 Flight Control Features:
1.GPS self-stabilization mode
2.Attitude mode
3.6G mode
4.Low battery return
5.One key return
6.Runaway return
7.bluetooth reference-digital transmission
8. BeiDou, GPS, Galileo and QZSS satellite four-mode positioning

Product Features:

1. High-precision rotor head: CNC processed high-precision DFC rotor head, its metal texture brings a great improvement in the sense of view. The high precision is also effective in reducing vibration and wear during flight, and the low center of gravity and compact structure of the DFC rotor head can provide better power performance.

2. Highly simulated appearance details: The appearance details of the real EC135 helicopter are restored as much as possible, and its nearly equal ratio of exhaust holes, windows, front windshield, etc. are all shown in front of your eyes, which brings an incomparable sense of realism.

3. Unique Tail Culvert: The tail culvert design is the same as that of the real EC135 helicopter, which ensures sufficient thrust and unique aesthetics at the same time.

4. FLISHRC exclusive L7 flight control. Adopting H7 processor, the operating frequency is up to 480MHz, the processing power is 4 times of the STM32F405 processor commonly used in other flight control, so that the flight control has a more rapid data processing capability. H7 processor also has a double-precision floating-point unit, to achieve higher precision control.

5. GPS positioning module has advanced BeiDou, GPS, Galileo, QZSS four-mode positioning capabilities, through the fusion of multiple positioning systems, effectively improving the positioning accuracy, reliability and anti-jamming capabilities. l7 flight control + four-mode positioning GPS, the two strong combination. L7 flight control + quad-mode positioning GPS, the two strong combination brings faster star search speed, more accurate positioning ability, more stable flight, more smooth operation.

6. Fixed height and point, self-stabilized flight, novice gospel: through the L7 flight control of high-precision calculations and GPS accurate positioning, so that the helicopter in the air can easily realize self-stabilized flight, fixed height and point and other functions, to do that push the stick that is to go, let go of both stop. There is no need to adjust the flying attitude of the helicopter through additional operations. Not only can novices easily control, feel the charm of flight, old players can also get rid of the cumbersome operation, enjoy the beautiful flight attitude like the real aircraft.

7. High-performance sensor onboard dual-channel IMU: equipped with dual-channel ICM42688P IMU, SPL-06 barometer, high-performance and high redundancy design combinations to bring higher data accuracy and stronger anti-interference, more secure and reliable. Built-in shock absorption design, effectively reduce the data error caused by vibration, so that the flight control can always get accurate data. Support bluetooth parameter adjustment function, debugging is more convenient.

Product list:

FL500 EC135 1:24 Scale RC Helicopter – 6CH 2.4G with FLISHRC L7 GPS Flight Controller (4 Positioning Modes)

(Due to the large size of the product, the chassis and others are shipped in separate packages. Need to assemble it by yourself after receiving the goods, please contact customer service for assembly video: [email protected] )

Package 1:
Helicopter fuselage
Package 2:
Helicopter internal components
Remote control*1
4500 mAh 6S 60C Battery *1
Charger *1
Receiver *1
Screwdriver *1

Applicable age: 18 +

Note: RC model helicopter is a high-risk and dangerous products, flight must be away from the crowd, man-made assembly is not appropriate or unfamiliar with the operation; damage to parts, electronic control equipment, as well as unfamiliarity with the control, may lead to flight loss of control of the damage and other unpredictable accidents, please be sure to pay attention to the safety of the flight, and need to understand the responsibility for any accident caused by negligence. Before each flight, please make sure to check the main rotor clamp cross shaft screws, tail rotor clamp screws, and all parts of the fuselage ball head, screws, and make sure that they are glued and locked before you take off for a flight.
