Live Steam Locomotive Model Train Engine 1

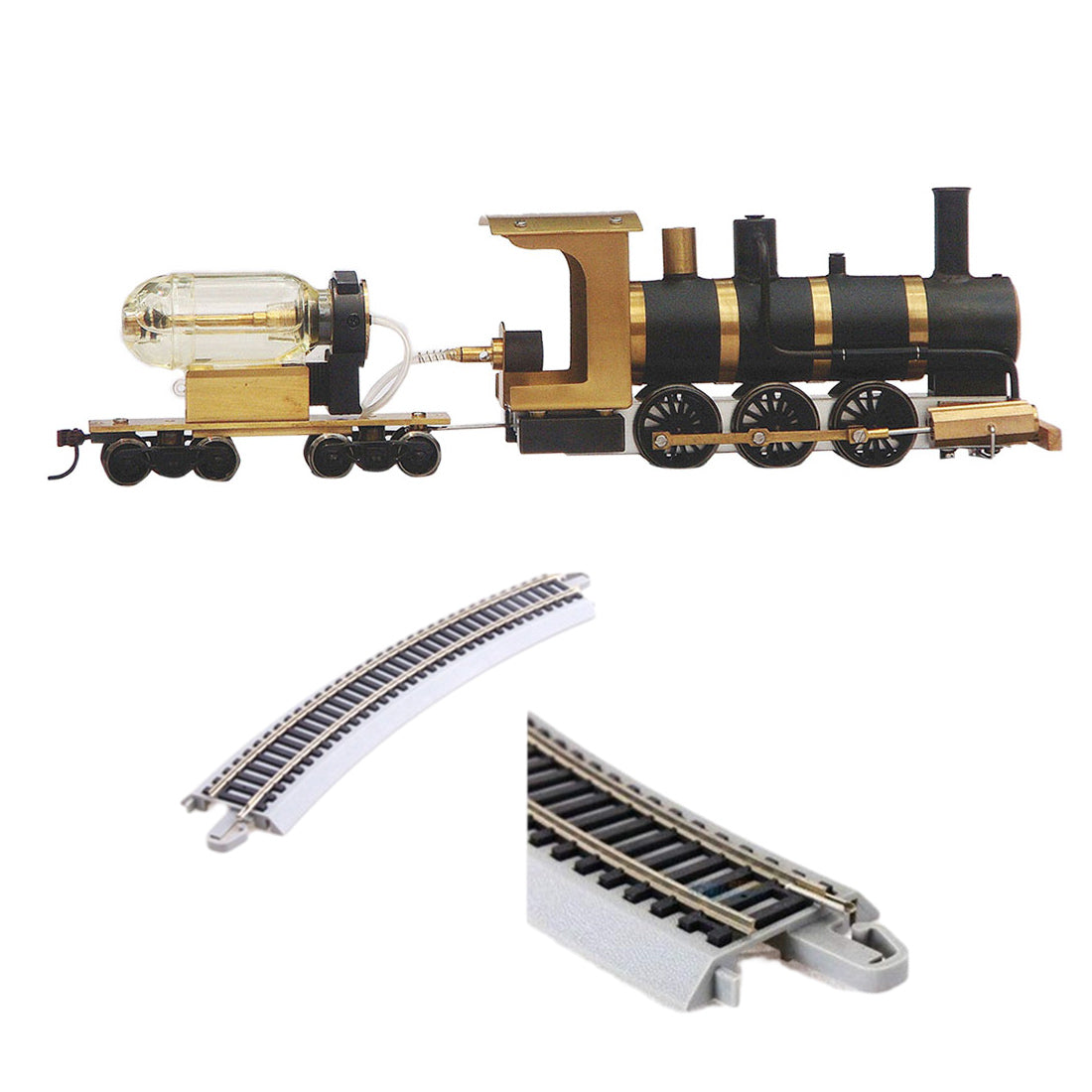

Live Steam Locomotive Model Train Engine 1:87 Ho Scale with Steam Engine Boiler Fuel Tank Track

Live steam is steam under pressure, obtained by heating water in a boiler. The steam is used to operate stationary or moving equipment.
This live steam engine is with locomotive design, when you operate it, you can learn how a steam locomotive works.

What Makes A Steam Locomotive Work?
When heated, water turns to an invisible vapor known as steam. The volume of water expands as it turns to steam inside the boiler, creating a high pressure. The expansion of steam pushes the pistons that connect to the driving wheels that operate the locomotive.

Features:
1, Exquisite Appearance: HO scale Live Steam train model with extremely craftsman style and mechanical beauty.
2, Real: It uses butane as fuel, burns and heats boilers, and is driven by a steam engine. The operation effect is powerful and real.
3, Gift Collection: By operating the steam engine and driving the train model, you can learn the operating principle of steam more intuitively. At the same time, this model is still a collectible craft.
4, Full Set: Include Steam engine , engine boiler, fuel tank and track. Prepare butane and you can make it start immediately.

Specifications:
Item Name: Live Steam Locomotive Model Train Engine
Material: Metal + Plastic + Glass
Scale: 1:87 HO Scale
Dimensions: 222mm in length (136mm locomotive + 86mm coal water truck), 39mm in width and 65mm in height. Net weight: 290g (locomotive + coal water truck)
Gauge: 16.5mm
Minimum Turning Radius: 422mm
Wheeled: 0-6-0
Boiler: Single combustion tube
Rated Water Injection Rate: 14mL (distilled water)
Steam Engine: Double-cylinder single-acting swing-type steam engine
Fuel: Butane gas
Running Time: About 10 minutes at medium speed
Safety Valve: Opening pressure is about 0.18MPa
Explosive Pipe: Break pressure is about 0.4MPa
Lubricator: Displacement Lubricator
Track: HO ratio nickel alloy 18-inch improved curved track, a total of 12 ring tracks composed of about 1 meter in diameter)
Product Dimensions: 22.2 x 3.9 x 6.5cm
Product Weight: 290g
Package Dimensions: 25 x 6 x 10cm
Package Weight: 500g
Packing: Box

Package Content:
1Set x Train Model
12 x Track
1 x 10ml Plastic Needle Tube
1 x 1ml Glass Needle Tube
1 x Cross Watch Batch
1 x Oil Bottle
1 x Ignitor
1Set x Safety Valve Test Kit
1Set x Spare Parts Package (Safety Spool + Explosive Tube + Butane Gas Delivery Tube + Small Screw)
1 x Manual
