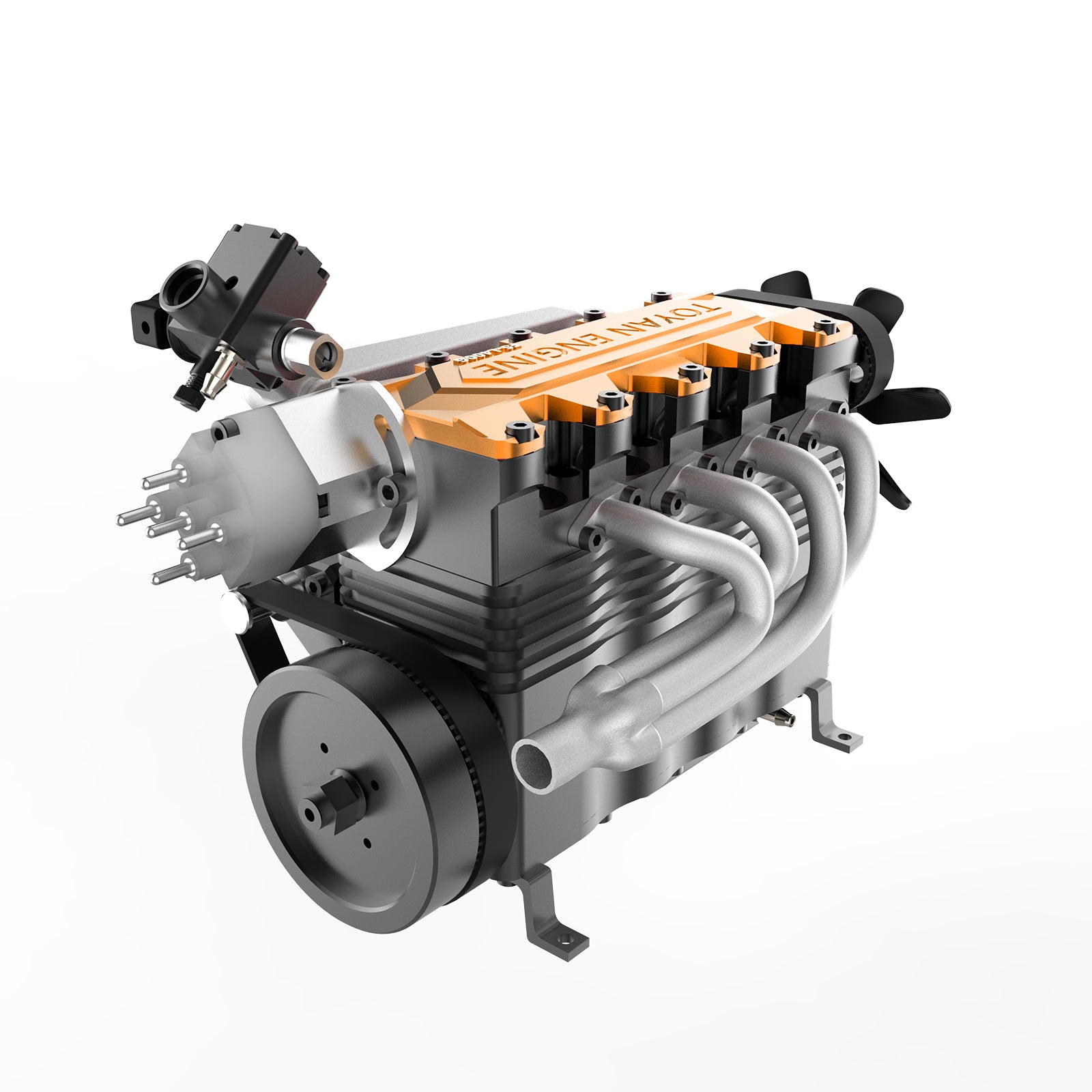

TOYAN FS-L400BGC 14CC Inline 4 Cylinder 4 Stroke OHC L4 Water-cooled Gasoline Engine Model for RC Model Car Ship Airplane

TOYAN L400BGC Engine Model that Works – Build Your Own Engine – New Updated TOYAN FS-L400BGC 14cc Inline 4 Cylinder Four-stroke Water-cooled Gas Engine Model Kit for 1:8 1:10 1:12 1:14 Model Car Ship Airplane

See What’s New in TOYAN L400BGC Engine!

Valve/ Camshaft Upgrade:
Upgraded valve manufacturing process extends lifespan by 3.5 times compared with TOYAN L400. High-angle camshaft makes the throttle response more sensitive.
Valve/camshaft upgrade:

Carburetor/ Intake Upgrade:
Carburetor redesigned with a matching fuel needle for easier engine startup. Newly designed intake manifold for user-friendly operation.

Oil Sump Upgrade:
Enlarged the size of oil sump to facilitate independent lubrication in later upgrades.

Integrated Crankshaft:
Features a 90-degree phased crankshaft structure for smoother and more responsive operation, reaching a maximum speed of 13500rpm.

Crankshaft Support Bracket:
A new crankshaft support frame is added to enhance the strength of the crankshaft in high-speed operation and improve operating stability.

Dual Synchronous Pulleys:
Dual synchronous pulley timing structure greatly reduces the risk of tooth skipping during high-speed operation.

Long Stroke:
The dual oil seal design on the crankshaft prevents oil leakage and avoids movement at high engine speeds, maintains stability during high-speed engine operation.

Highly Simulation – More Realistic:
Sports-inspired gold design for a highly simulated engine appearance, operates with real gasoline.

Fun DIY:
High-precision parts manufacturing, assembly according to the instructions, easy to follow, and the most in-depth understanding of the engine structure and mechanical principles.

Age Recommendation: 16+

Warm Reminder:
This TOYAN L400BGC engine is in KIT version and it needs assemble. It does not come with any accessories like base, spark plugs, ignition accessories, water cooling accessories, etc.
Attention please follow the instructions to avoid any damage to the engine. Any advice or questions, please feel free to email us at [email protected]

More Details:
.Material: Metal
.Brand: TOYAN
.Model: FS-L400BGC
.Form: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHC (Overhead Camshaft)
.Displacement: 14cc (4 x 3.5cc)
.Cylinders: Inline Four-Cylinder
.Stroke: Four-Stroke
.Bore Diameter: 16.6mm
.Stroke Length: 17.0mm
.RPM Range: 3200-13500rpm
.Power Output: 3.05hp
.Cooling System: Water-Cooled + Air-Cooled
.Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
.Start Mechanism: Electric Start
.Ignition Method: CDI Ignition
.Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug
.Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery
.Fuel Type: 92# and Above Gasoline
.Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
.Product Weight: 1250g
.Product Dimensions: 16.35 x 5.05 x 10cm
.Package Dimensions: 21.5 x 21.5 x 17cm
.Package Weight: 1950g
.Packing: Box

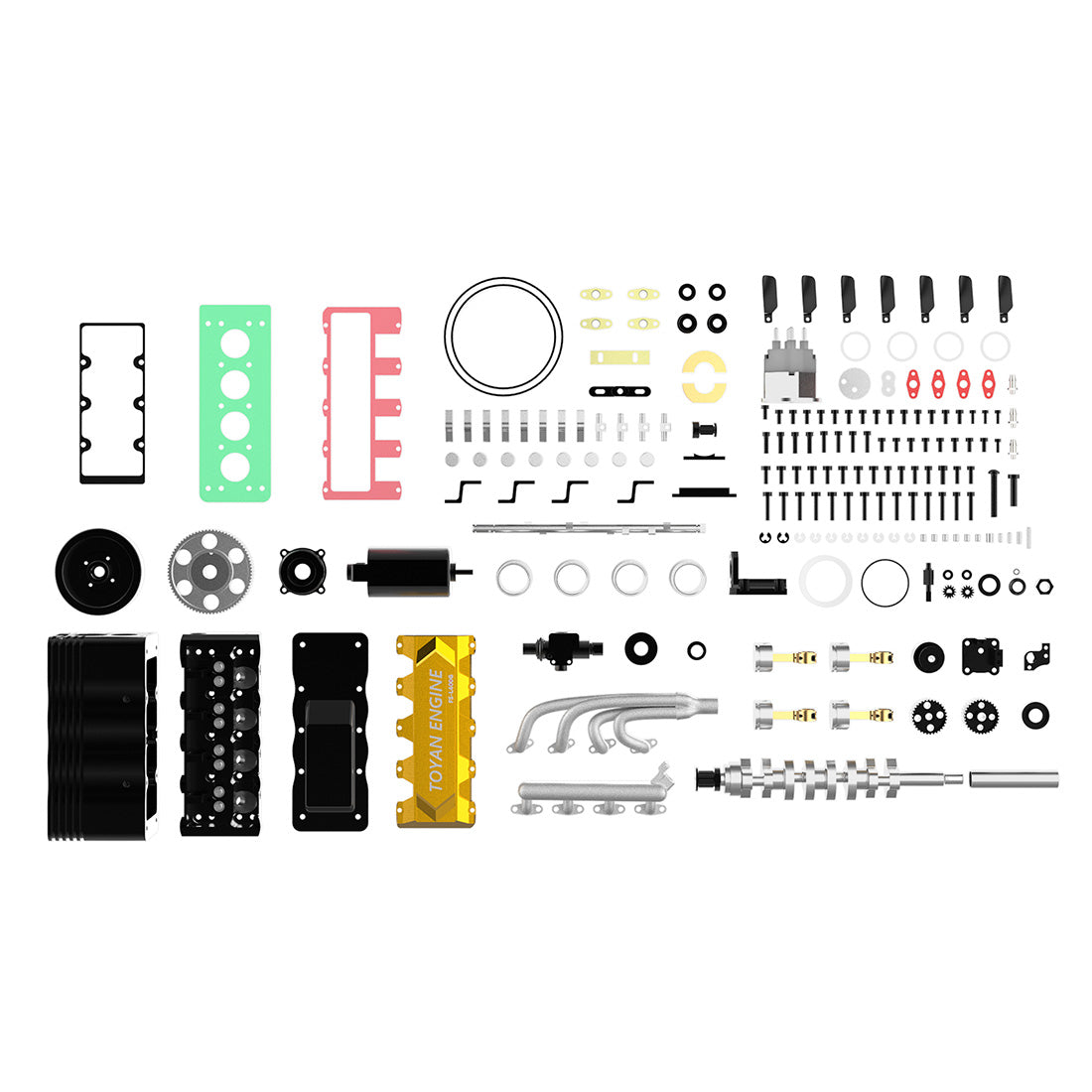

Package List:
1 x TOYAN FS-L400BGC Engine Model Kit
1 x Tool Set for TOYAN Engine
1 x Instructions
